XY-RKC 5/9-ECN

SKU: XY-RKC 5/9-ECN

BRAND: Wain

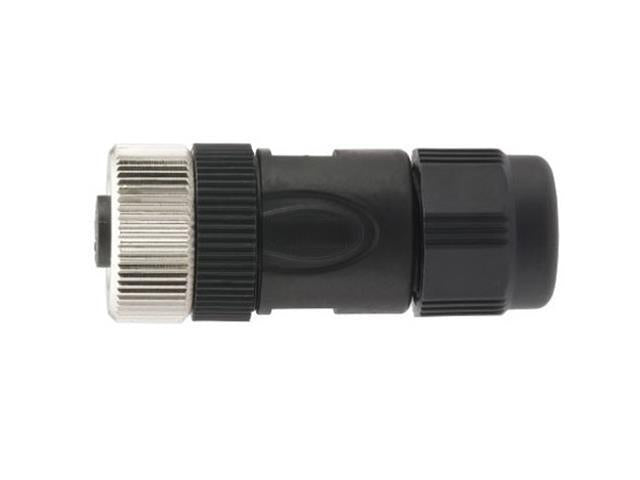

Circular Connector M12 A COD Cable Female Straight. 5 Pole Screw Terminal PG9 Cable Entry

M12 Circular Connector

Specifications

Technical characteristics
Number of contacts 5
Rated current (40 °C) 4A
Rated voltage 125V
Rated impulse voltage 1500V
Pollution degree 3
Overvoltage categorie
Contact resistance ≤10mΩ
Connector locking system screw M12x1
Termination

screw

Wire gauge max.0.75mm(max.AWG18)
Cable outlet

6-8mm

Degree of protection IP67
Mechanical operation >100
Limiting temperature -40℃...+85℃
Material group II
Material of contact copper alloy
Contact plating Au
Insulating material PA
Material of housing PA/PBT

Downloads

Additional Information

Device Connector
Type M12 | Circular
