XY-RSC 5/9-ECN

Name: XY-RSC 5/9-ECN - Communica [Part No: XY-RSC 5/9-ECN]
Brand: Wain
SKU: XY-RSC 5/9-ECN
Price: 155.34 ZAR
Availability: InStock

SKU: XY-RSC 5/9-ECN

BRAND: Wain

R 178.64_{(inc VAT)}
R 155.34_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

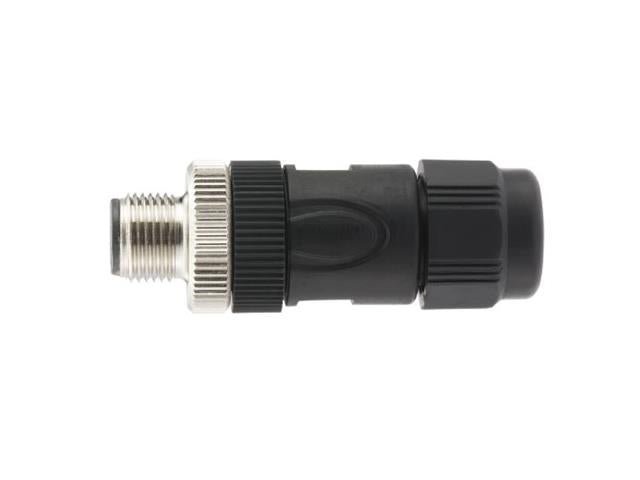

Circular Connector M12 A COD Cable Male Stright. 5 Pole Screw Terminal PG9 Cable Entry

M12 Circular Connector

Specifications

Technical characteristics
Number of contacts	4
Rated current (40 °C)	4A
Rated voltage	250V
Rated impulse voltage	2500V
Pollution degree	3
Overvoltage categorie	‖
Contact resistance	≤10mΩ
Connector locking system	screw M12x1
Termination	screw
Wire gauge	max.0.75mm²(max.AWG18)
Cable outlet	4-6mm
Degree of protection	IP67
Mechanical operation	＞100
Limiting temperature	-40℃...+85℃
Material group	\|\|\|
Material of contact	copper alloy
Contact plating	Au
Insulating material	PA
Material of housing	PA/PBT

Downloads

Datasheet - XY-RSC 5/9-ECN

Additional Information

Device	Connector
Type	M12 \| Circular

Elevate your connectivity with the XY-RSC 5/9-ECN M12 Circular Connector. Designed for durability and reliability, this 5-pole connector features a secure screw terminal and robust IP67 protection, ensuring optimal performance in challenging environments. Perfect for industrial applications, it supports up to 4A and 250V, making it an essential choice for your wiring needs.
