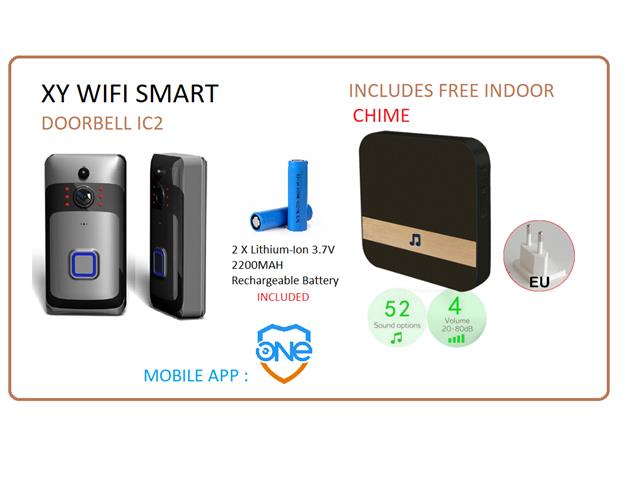

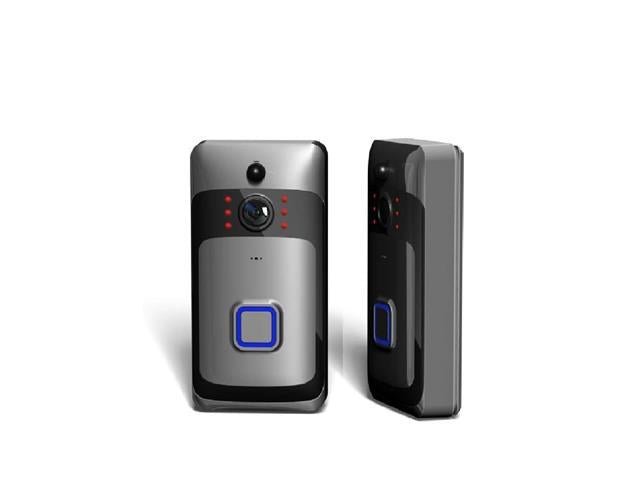

• Model NO : XY WIFI SMART DOORBELL IC2
• Product Name : Low-power Intelligent WIFI Camera
• Chippest : T20Z
• WIFI : AW-NB197SM,WIFI 2.4GHz, IEEE802.11b/g/n
• PIR Distance : 10 meters
• SD Card Storage : Support Max 128G
• LED : 8pcs 850nm IR LED,10 meters IR Distance
• Indicator Light : Blue,Red
• Button : Reset Button
• Distribution network : Acoustic distribution network
• Video : TF card (10 seconds each time, can be set), support mobile phone local recording, device recording,Cloud recording
• Push Massage : Push in 1s
• Motion Detection : PIR motion detection, high sensitivity / medium / low level adjustable

Image Sensor

• Sensor : F23
• Resolution : 1920*1080
• Size : 1/2.9"

Lens

• Focal Length : 2.0MM
• Aperture : F2.4
• Perspective : Diagonal 135°

Audio

• Horn : 8Ω/1W
• MIC : Support, sound capture distance > 3 meters
• Intercom : Two-way voice intercom
• Echo cancellation : Own echo cancellation
• Howling : Howling suppression

Wake-up

• Wake-up Method : Mobile phone remote wakeup, PIR wake up
• Wake up time : <500ms

Power

• Battery Powered : 5000mAh rechargeable lithium batteries
• External Power Supply : Micro USB Port(DC5.0V）
• Working Current :260mA/3.7V
• Standby Current : 200uA/3.7V
• Standby : 6 months
• USB Charge : 10 hours full charge

Function

• Intelligent Detection : Self-owned intelligent detection algorithm to effectively reduce false positives
• Ultra low power consumption : Intelligent power saving, long standby, 5000mA original 18650 battery, normal use 8-12 months
• Simple Distribution Network : Device configuration in just 2 steps
• Quick Response : Wake up to see images up to 3 seconds, message push within 1 second
• Remote Transmission : Opening space up to 100m,with obstacle up to 30m high quality image
• Super Push Massage : The industry's first company can still receive news pushes when APP exits the background, solving the industry's pain points on the market.
• Others : Two-way voice intercom, SD card video query, Cloud recording query,device sharing, device transfer, APP online update device firmware

General

• Operating Temperature : "-10~+60 ℃
• Storage Temperature : "-20~+70 ℃
• Waterproof Level : IP66
• Mobile APP : Onecam
