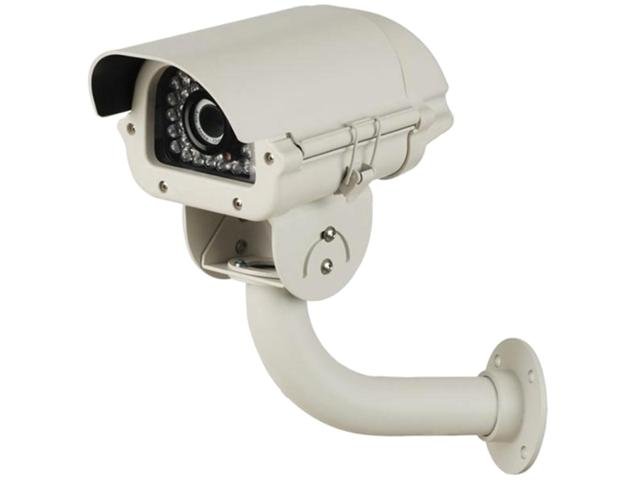

Waterproof Car Number Plate Capture Colour Camera 1/3" Sony Super HAD CCD • Variable Shutter Speed • 480 TVL • 6~15mm Varifocal Lens • 36 pcs F8 Visible Light LED 40m • DC12V

Specifications

Signal System : PAL
Sensor CCD : 1/3inch Sony Super HAD CCD
Pixel Effective : 752 (H) x 582 (V)
Horizontal Resolution : 480 TV Lines
Lens : 6~15mm varifocal
The shutter speed is :

Auto: 1/50~1/10,000s
Manual: 1/50 1/120 1/500 1/1000 1/10000s
(Adjustable by opening camera case)

Minimum Illumination : 0 LUX (IR ON)
S/N Ratio : More than 60 dB
Distance : 40 Metre
View Angle : 22~54°
LED : 36 unit F8 Visible light LED ; Wave Length : 840 nM
Average life : 20000 hours
Water Resistance : IP65
Video Output : 1Vp-p 75O. Y/C Separated
Connector Video : BNC
Operation Temperature : -20°C to +50°C
Supplied Power : 12V (+/-10%)

Additional Information

Device	Camera
Type	Car Number Plate Capture
Highlights	1/3" SONY Super HAD CCD
Image Sensor	1/3" SONY Super HAD CCD
Horizontal Definition (Resolution)	480 TV Lines
Viewing Angle	22~54°
Minimum Illumination	0 Lux (IR on)
Lens	6~15mm Verifocal Lens
Power Supply	DC12V
Open Transmission Distances	40m
TV System	PAL
Validity Pixel	752(H) x 582(V)
