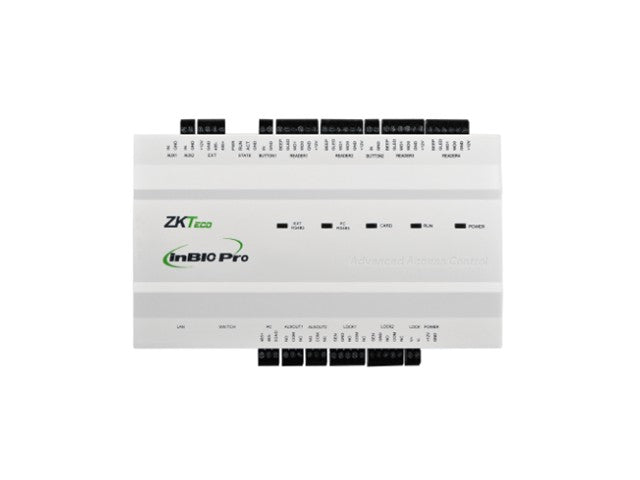

SKU: ZKT INBIO 260 PRO-PLUS
BRAND: ZKTeco
R 6,095.00 (inc VAT)
R 5,300.00 (ex VAT)
Collections: New Arrivals, Security, Access Control & Surveillance
Type: Access Automation
Category: Fingerprint Door Controller, New
|

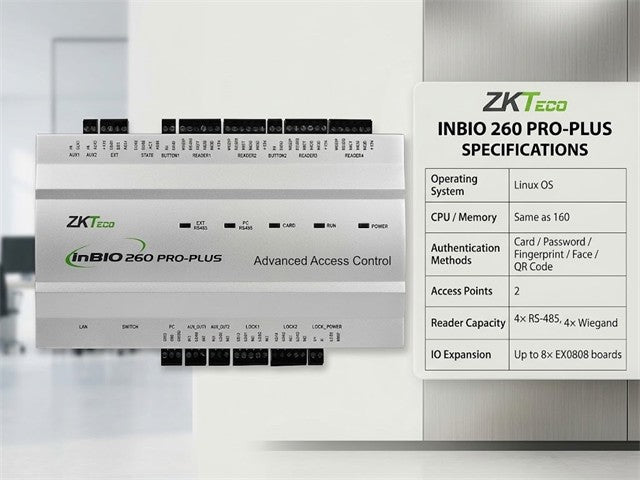

Model |
InBio260 Pro Plus |
|
Operating System |
Linux OS |
|
CPU / Memory |
Same as 160 |
|
Authentication Methods |
Card / Password / Fingerprint / Face / QR Code |
|
Access Points |
2 |
|
Reader Capacity |
4× RS-485, 4× Wiegand |
|
IO Expansion |
Up to 8× EX0808 boards |
|
User Capacity |
100,000 |
|
Card Capacity |
100,000 |
|
Fingerprint Capacity |
20,000 |
|
Face Capacity |
3,000 |
|
QR Code Capacity |
100,000 |
|
Transaction Capacity |
500,000 |
|
Biometric Algorithm |
ZKFingerprint V10.0/V13.0; ZKLiveface 3.5/4 |
|
Authentication Speed |
<0.3s (FP/Face) |
|
FAR |
≤0.0001% (FP); ≤0.01% (Face) |
|
FRR |
≤0.01% (FP); ≤0.02% (Face) |
|
Inputs |
2 Exit, 2 Door, 2 AUX (expandable) |
|
Outputs |
2 Lock, 2 AUX |
|
Card Length |
Up to 66 bits |
|
QR Code Types |
PDF417, Data Matrix, MicroPDF417, Aztec |
|
Communication |
TCP/IP, RS-485, 4× Wiegand, USB, 2 AUX I/O |
|
Standard Functions |
Webserver, Access Levels, Anti-passback, Linkage, etc. |
|
Interface |
Wiegand, RS-485 |
|
Power Supply |
9.6V–14.4V DC |
|
Operating Temp |
0°C to 45°C |
|
Humidity |
20%–80% RH |
|
Dimensions (mm) |
185.12 × 106 × 36.07 |
|
Gross Weight |
1.037 kg |
|
Net Weight |
0.422 kg |
|
Software |
ZKBio CVSecurity |
|
Installation |
DIN Rail / Wall Mount / Optional Enclosure |
|
Enclosure (Optional) |
12V 4A+1A PSU, 3.57 kg |
|
Certifications |
ISO14001, ISO9001, CE, FCC, RoHS |
|
Factory ID |
AC02-CB12H-U10 |
| Device | Controller |
