ZOV07D390K

Name: ZOV07D390K - Communica [Part No: ZOV07D390K]
Brand: Hitano
SKU: ZOV07D390K
Price: 2.18 ZAR
Availability: InStock

SKU: ZOV07D390K

BRAND: Hitano

R 2.51_{(inc VAT)}
R 2.18_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Passive Components

Type: Surge Protection Components

Category: Varistors - Metal Oxide ZOV(MOV)

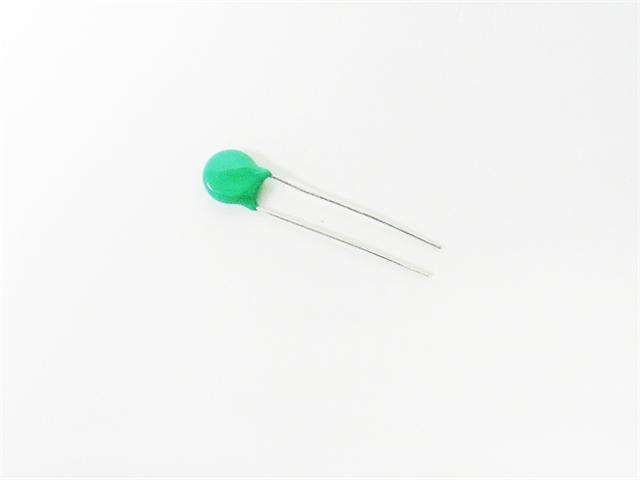

MOV Metal Oxide Varistor Ø 7mm • VACrms= 25V • Prated= 0.02W • Energy10/1000 uS= 2.1 J

Overview

ZOV varisotrs are nonlinear 2-electrode semiconductor voltage-dependant resistors, which are designed for transient voltage suppression and surge energy absorption.

Features

Large absorbing transient energy capability
Very short response time
Low Clamping ratio and no follow-on current
High resistance Insulation Material prevents the electric arching to the adjacent devices

Specification

Size	7mm
Max Allowable ACrms Voltage (V)	25V
Max Allowable DC Voltage (V)	31V
Varistor Voltage @1mA (V)	39V
Max Peak Current @8/20uS (A)	250A
Max Energy 10/1000 uS (J)	2.1
Rated Power (W)	0.02W
Typical Capacitance @ 1kHz (pF)	1300F

Protect your electronics with the ZOV07D390K Metal Oxide Varistor. Designed for superior transient voltage suppression, this 7mm varistor offers fast response times and robust energy absorption up to 2.1 J, ensuring your devices stay safe from surges. With a low clamping ratio and high insulation resistance, it’s the ideal choice for reliable, long-lasting performance.
