ZOV10D241K

Name: ZOV10D241K - Communica [Part No: ZOV10D241K]
Brand: Hitano
SKU: ZOV10D241K
Price: 3 ZAR
Availability: OutOfStock

SKU: ZOV10D241K

BRAND: Hitano

Sold Out
R 3.45_{(inc VAT)}
R 3.00_{(ex VAT)}

Collections: Passive Components

Type: Surge Protection Components

Category: Varistors - Metal Oxide ZOV(MOV)

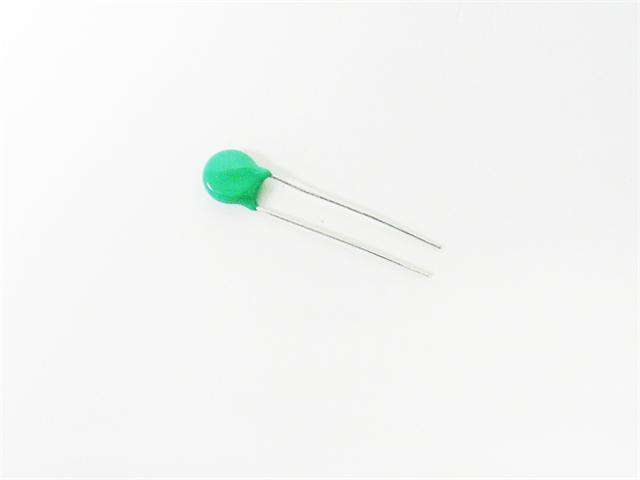

MOV Metal Oxide Varistor Ø 10mm • VACrms= 150V • Prated= 0.4W • Energy10/1000 uS= 35 J

Overview

ZOV varisotrs are nonlinear 2-electrode semiconductor voltage-dependant resistors, which are designed for transient voltage suppression and surge energy absorption.

Features

Large absorbing transient energy capability
Very short response time
Low Clamping ratio and no follow-on current
High resistance Insulation Material prevents the electric arching to the adjacent devices

Specification

Size	10mm
Max Allowable ACrms Voltage (V)	150V
Max Allowable DC Voltage (V)	200V
Varistor Voltage @1mA (V)	240V
Max Peak Current @8/20uS (A)	2500A
Max Energy 10/1000 uS (J)	35
Rated Power (W)	0.4W
Typical Capacitance @ 1kHz (pF)	420F
