ZOV10D391K

Name: ZOV10D391K - Communica [Part No: ZOV10D391K]
Brand: Hitano
SKU: ZOV10D391K
Price: 3 ZAR
Availability: InStock

SKU: ZOV10D391K

BRAND: Hitano

R 3.45_{(inc VAT)}
R 3.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Passive Components

Type: Surge Protection Components

Category: Varistors - Metal Oxide ZOV(MOV)

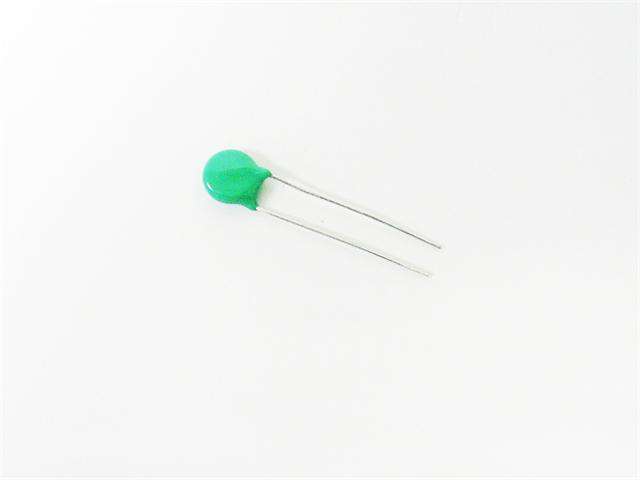

MOV Metal Oxide Varistor Ø 10mm • VACrms= 250V • Prated= 0.4W • Energy10/1000 uS= 60 J

Overview

ZOV varisotrs are nonlinear 2-electrode semiconductor voltage-dependant resistors, which are designed for transient voltage suppression and surge energy absorption.

Features

Large absorbing transient energy capability
Very short response time
Low Clamping ratio and no follow-on current
High resistance Insulation Material prevents the electric arching to the adjacent devices

Specification

Size	10mm
Max Allowable ACrms Voltage (V)	250V
Max Allowable DC Voltage (V)	320V
Varistor Voltage @1mA (V)	390V
Max Peak Current @8/20uS (A)	2500A
Max Energy 10/1000 uS (J)	60
Rated Power (W)	0.4W
Typical Capacitance @ 1kHz (pF)	260F

Protect your electronics with the ZOV10D391K MOV Metal Oxide Varistor. Designed for efficient transient voltage suppression, it boasts a rapid response time and high energy absorption of 60J, ensuring your devices stay safe from surges. Its compact 10mm size and low clamping ratio make it an ideal choice for reliable circuit protection.
