ZOV14D101K

Name: ZOV14D101K - Communica [Part No: ZOV14D101K]
Brand: Hitano
SKU: ZOV14D101K
Price: 4.98 ZAR
Availability: OutOfStock

SKU: ZOV14D101K

BRAND: Hitano

Sold Out
R 5.73_{(inc VAT)}
R 4.98_{(ex VAT)}

Collections: Passive Components

Type: Surge Protection Components

Category: Varistors - Metal Oxide ZOV(MOV)

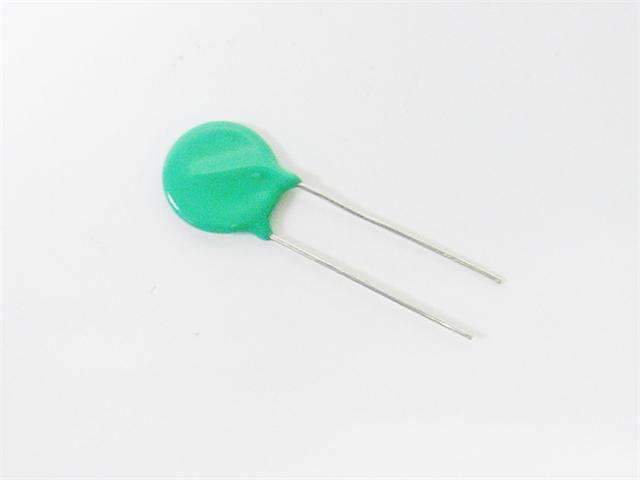

MOV Metal Oxide Varistor Ø 14mm • VACrms= 60V • Prated= 0.6W • Energy10/1000 uS= 28 J

Overview

ZOV varisotrs are nonlinear 2-electrode semiconductor voltage-dependant resistors, which are designed for transient voltage suppression and surge energy absorption.

Features

Large absorbing transient energy capability
Very short response time
Low Clamping ratio and no follow-on current
High resistance Insulation Material prevents the electric arching to the adjacent devices

Specification

Size	14mm
Max Allowable ACrms Voltage (V)	60V
Max Allowable DC Voltage (V)	85V
Varistor Voltage @1mA (V)	100V
Max Peak Current @8/20uS (A)	4500A
Max Energy 10/1000 uS (J)	28
Rated Power (W)	0.6W
Typical Capacitance @ 1kHz (pF)	2000F

Protect your electronic devices with the ZOV14D101K MOV Metal Oxide Varistor. Measuring 14mm, this high-performance varistor offers exceptional transient voltage suppression and surge energy absorption, ensuring reliable operation with a low clamping ratio and fast response time. With a maximum voltage of 60V and energy capacity of 28J, it safeguards your equipment from damaging voltage spikes, enhancing longevity and performance.
