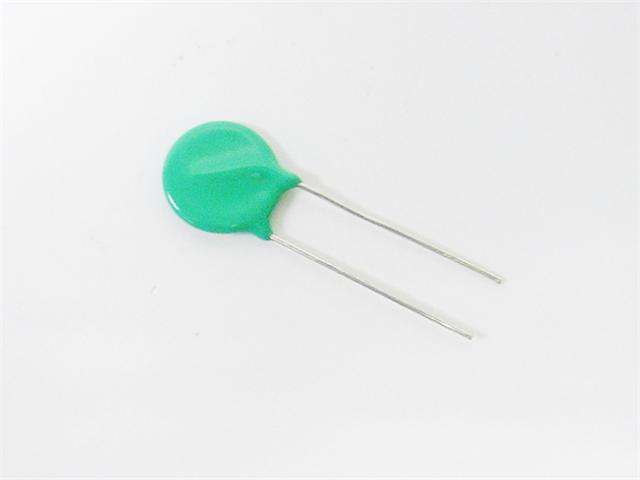

ZOV14D151K

Name: ZOV14D151K - Communica [Part No: ZOV14D151K]
Brand: Hitano
SKU: ZOV14D151K
Price: 4.75 ZAR
Availability: OutOfStock

SKU: ZOV14D151K

BRAND: Hitano

Sold Out
R 5.46_{(inc VAT)}
R 4.75_{(ex VAT)}

Collections: Passive Components

Type: Surge Protection Components

Category: Varistors - Metal Oxide ZOV(MOV)

MOV Metal Oxide Varistor Ø 14mm • VACrms= 95V • Prated= 0.6W • Energy10/1000 uS= 40 J

Overview

ZOV varisotrs are nonlinear 2-electrode semiconductor voltage-dependant resistors, which are designed for transient voltage suppression and surge energy absorption.

Features

Large absorbing transient energy capability
Very short response time
Low Clamping ratio and no follow-on current
High resistance Insulation Material prevents the electric arching to the adjacent devices

Specification

Size	14mm
Max Allowable ACrms Voltage (V)	95V
Max Allowable DC Voltage (V)	125V
Varistor Voltage @1mA (V)	150V
Max Peak Current @8/20uS (A)	4500A
Max Energy 10/1000 uS (J)	40
Rated Power (W)	0.6W
Typical Capacitance @ 1kHz (pF)	1300F
