ZOV14D330K

Name: ZOV14D330K - Communica [Part No: ZOV14D330K]
Brand: Hitano
SKU: ZOV14D330K
Price: 5.20 ZAR
Availability: InStock

SKU: ZOV14D330K

BRAND: Hitano

In Stock
R 5.98_{(inc VAT)}
R 5.20_{(ex VAT)}

Collections: Passive Components

Type: Surge Protection Components

Category: Varistors - Metal Oxide ZOV(MOV)

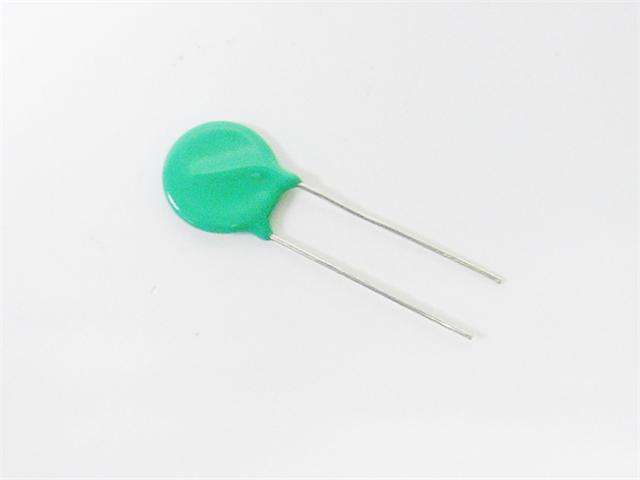

MOV Metal Oxide Varistor Ø 14mm • VACrms= 20V • Prated= 0.1W • Energy10/1000 uS= 7 J

Overview

ZOV varisotrs are nonlinear 2-electrode semiconductor voltage-dependant resistors, which are designed for transient voltage suppression and surge energy absorption.

Features

Large absorbing transient energy capability
Very short response time
Low Clamping ratio and no follow-on current
High resistance Insulation Material prevents the electric arching to the adjacent devices

Specification

Size	14mm
Max Allowable ACrms Voltage (V)	20V
Max Allowable DC Voltage (V)	26V
Varistor Voltage @1mA (V)	33V
Max Peak Current @8/20uS (A)	1000A
Max Energy 10/1000 uS (J)	7
Rated Power (W)	0.1W
Typical Capacitance @ 1kHz (pF)	6100F
