ZOV14D470K

Name: ZOV14D470K - Communica [Part No: ZOV14D470K]
Brand: Hitano
SKU: ZOV14D470K
Price: 5.18 ZAR
Availability: OutOfStock

SKU: ZOV14D470K

BRAND: Hitano

Sold Out
R 5.96_{(inc VAT)}
R 5.18_{(ex VAT)}

Collections: Passive Components

Type: Surge Protection Components

Category: Varistors - Metal Oxide ZOV(MOV)

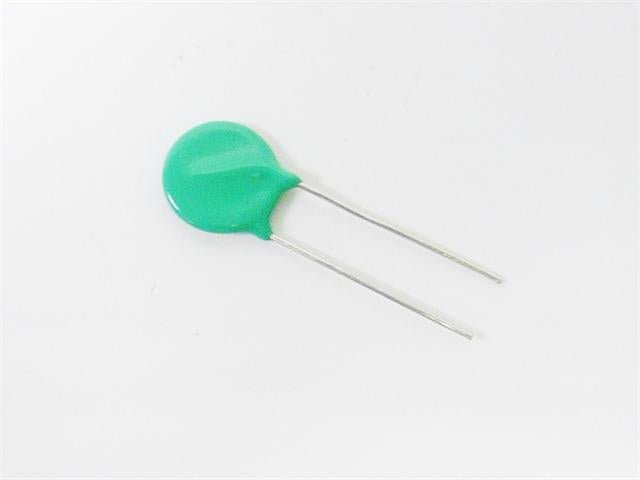

MOV Metal Oxide Varistor Ø 14mm • V_ACrms= 30V • P_rated= 0.1W • Energy_{10/1000 uS}= 10 J

Overview

ZOV varisotrs are nonlinear 2-electrode semiconductor voltage-dependant resistors, which are designed for transient voltage suppression and surge energy absorption.

Feature(s)

Large absorbing transient energy capability
Very short response time
Low Clamping ratio and no follow-on current
High resistance Insulation Material prevents the electric arching to the adjacent devices

Additional Information

Device	MOV Metal Oxide Varistor
Type	Zinc Oxide
Size	14mm
Max Allowable ACrms Voltage (V)	30V
Max Allowable DC Voltage (V)	38V
Varistor Voltage @1mA (V)	47V
Max Peak Current @8/20uS (A)	1000A
Max Energy 10/1000 uS (J)	10
Rated Power (W)	0.1W
Typical Capacitance @ 1kHz (pF)	4300F

Protect your electronics with the ZOV14D470K Metal Oxide Varistor. Designed for rapid transient voltage suppression, this 14mm component efficiently absorbs surge energy up to 10J, ensuring reliable performance and safety. With a low clamping ratio and high insulation resistance, it safeguards your devices from electrical arcing, making it a vital addition to any circuit.
