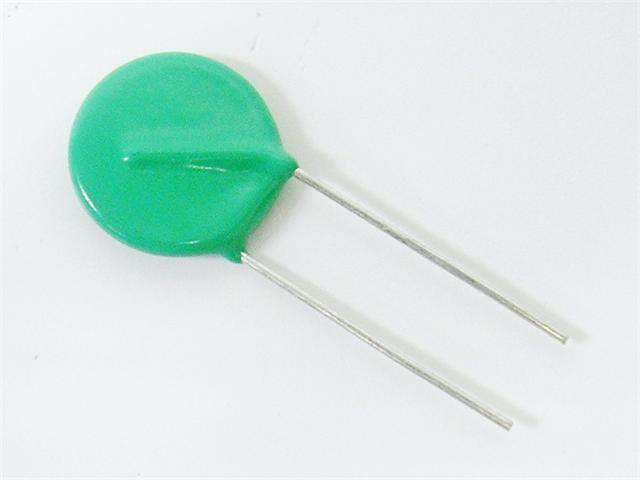

ZOV20D680K

SKU: ZOV20D680K

BRAND: Hitano


MOV Metal Oxide Varistor Ø 20mm • VACrms= 40V • Prated= 0.2W • Energy10/1000 uS= 46 J

Overview

 ZOV varisotrs are nonlinear 2-electrode semiconductor voltage-dependant resistors, which are designed for transient voltage suppression and surge energy absorption.

Features



  • Large absorbing transient energy capability
  • Very short response time
  • Low Clamping ratio and no follow-on current
  • High resistance Insulation Material prevents the electric arching to the adjacent devices

Specification

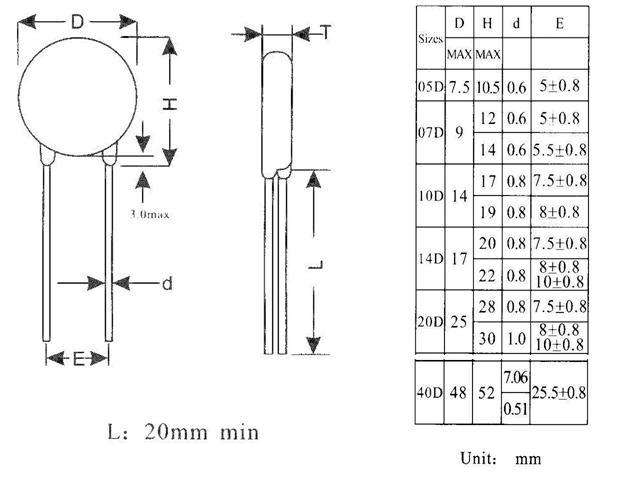

Size 20mm
Max Allowable ACrms Voltage (V) 40V
Max Allowable DC Voltage (V) 56V
Varistor Voltage @1mA (V) 68V
Max Peak Current @8/20uS (A) 2000A
Max Energy 10/1000 uS (J) 46
Rated Power (W) 0.2W
Typical Capacitance @ 1kHz (pF) 5800F
