ZOV20D751K

Name: ZOV20D751K - Communica [Part No: ZOV20D751K]
Brand: Hitano
SKU: ZOV20D751K
Price: 12.50 ZAR
Availability: OutOfStock

SKU: ZOV20D751K

BRAND: Hitano

Sold Out
R 14.38_{(inc VAT)}
R 12.50_{(ex VAT)}

Collections: Passive Components

Type: Surge Protection Components

Category: Varistors - Metal Oxide ZOV(MOV)

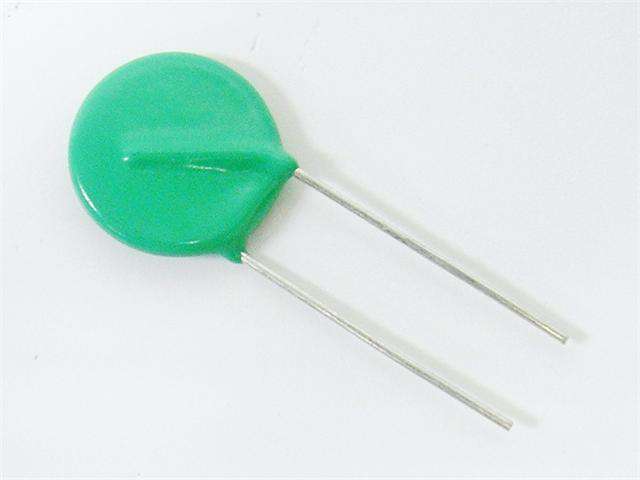

MOV Metal Oxide Varistor Ø 20mm • VACrms= 460V • Prated= 1W • Energy10/1000 uS= 255 J

Overview

ZOV varisotrs are nonlinear 2-electrode semiconductor voltage-dependant resistors, which are designed for transient voltage suppression and surge energy absorption.

Features

Large absorbing transient energy capability
Very short response time
Low Clamping ratio and no follow-on current
High resistance Insulation Material prevents the electric arching to the adjacent devices

Specification

Size	20mm
Max Allowable ACrms Voltage (V)	460V
Max Allowable DC Voltage (V)	615V
Varistor Voltage @1mA (V)	750V
Max Peak Current @8/20uS (A)	6500A
Max Energy 10/1000 uS (J)	255
Rated Power (W)	1W
Typical Capacitance @ 1kHz (pF)	530F

Protect your devices with the ZOV20D751K Metal Oxide Varistor, designed for superior transient voltage suppression. With a robust energy absorption capability of 255J and a fast response time, this 20mm varistor ensures optimal safety and performance, preventing electrical arcing and enhancing your equipment's lifespan. Ideal for reliable surge protection in various applications.
