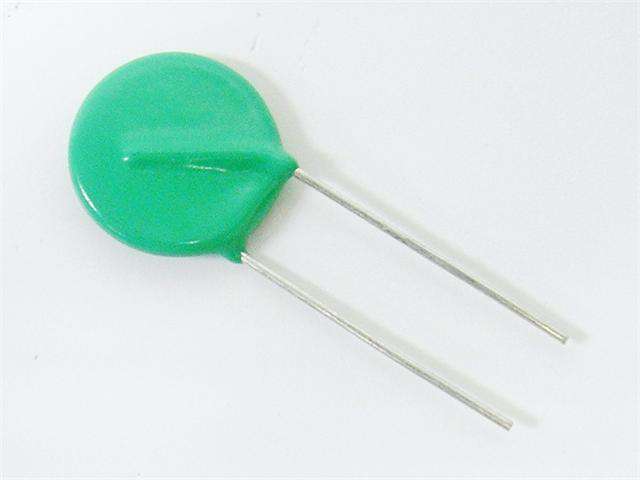

ZOV40D821K

SKU: ZOV40D821K

BRAND: Hitano


MOV Metal Oxide Varistor Ø 40mm • VACrms= 510V • Energy10/1000 uS= 1080 J

Overview

 ZOV varisotrs are nonlinear 2-electrode semiconductor voltage-dependant resistors, which are designed for transient voltage suppression and surge energy absorption.

Features



  • Large absorbing transient energy capability
  • Very short response time
  • Low Clamping ratio and no follow-on current
  • High resistance Insulation Material prevents the electric arching to the adjacent devices

Specification


Size 40mm
Max Allowable ACrms Voltage (V) 510V
Max Allowable DC Voltage (V) 670V
Varistor Voltage @1mA (V) 820V
Max Peak Current @8/20uS (A) 40000A
Max Energy 10/1000 uS (J) 1080
Typical Capacitance @ 1kHz (pF) 2090F
