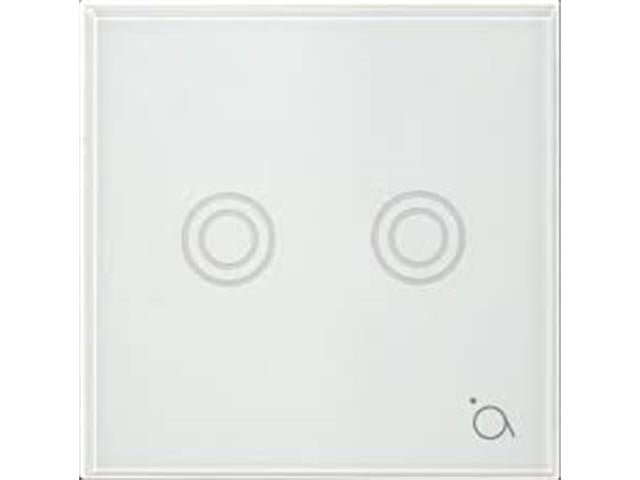

Wall Mount Touch Switch

The AirLive SA-105 is a Dual Touch Dual Relay Wall Switch with Z-Wave Plus technology it's a switching device which can replace your existing light switch. When you replace your old light switch with the SA-105 it will allow you to control your light or other devices via the AirLive SmartLife Plus app but also set scenes macros to automate your home. Touch control will give your home a more modern look.

Easy Installation

Replacing your old light switch the AirLive SA-105 Z-Wave Light switch is easy. You just have to remove your old switch and install the SA-105 but please be noted you need a neutral line to make the switch work.

Voice Control your Light

Use multiple Wall switches around your house and make scenes in the AirLive SmartLife Plus APP. Turn on one light or make a scene to turn on/off all your lights. You can even control them by Voice with Amazon Alexa and Google Home/Assistant.

• Z-Wave Plus
• Up to mac 2500W Resistive Load
• Overload Protection
• On/Off Control Scheduling
• Act as Z-wave Repeater automatically
• Longer Z-wave signal transmission
• Elegant design

• Model : SA-105 Dual Touch Dual Relay Wall Switch Z-Wave Plus
• Z-Wave Standard : Z-wave plus
• vZ-Wave Frequency : CE：868.40 MHz, 869.85 MHz
• FCC：904.8MHz, 916.00MHz
• Maximum transmission distance : 40m (Indoor), 100m (outdoor)
• Supply Voltage : 90 ~ 240 VAC
• Maximum Output Current : 16A (Resistive Load)
• Maximum Output Power : 2500W
• LED Indicator : 2 x LED Blue/Pink (one per paddle)
• Panel : 1mm Single Crystal Tempered Glass

Dimension and Environment

• Dimensions : EU：86 (L) x 86(W) x 34(H) mm
• US：120 (L) x 74 (W) x 37(H) mm
• Operating Temperature : 0 ~ 40° C
• Humidity : 10% ~ 95%

1. Datasheet - AIRLIVE DUAL WALL SWITCH SA-105
2. Quick Installation Guide - AIRLIVE DUAL WALL SWITCH SA-105
3. User Guide - AIRLIVE DUAL WALL SWITCH SA-105
