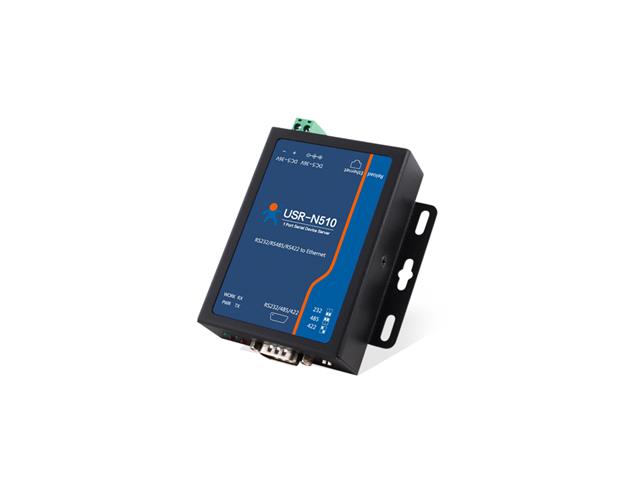

USR N510 1-PORT SERIAL-ETHERNET

Name: USR N510 1-PORT SERIAL-ETHERNET - Communica [Part No: USR N510 1-PORT SERIAL-ETHERNET]
Brand: UsrIoT
SKU: USR N510 1-PORT SERIAL-ETHERNET
Price: 1220 ZAR
Availability: OutOfStock

SKU: USR N510 1-PORT SERIAL-ETHERNET

BRAND: UsrIoT

Sold Out
R 1,403.00_{(inc VAT)}
R 1,220.00_{(ex VAT)}

Collections: Computing & Peripherals

Type: Industrial IoT Wi-fi Solutions

Category: Ethernet Media Converters

An Industrial 1 Port Ethernet Device Server with Bi-Directional Transparent Transmission Between Rs232/RS485/RS422 and Network.

1 Port Ethernet Device Server

Overview

1 port Ethernet device servers USR-N510 can realize bi-directional transparent transmission between RS232/RS485/RS422 and network. Simple settings via webpage or setup software can assign working details.

Ethernet device servers USR-N510 are based on ARM processor and it is internally integrated with TCP/IP protocol. User can easily realize embedded device networking.

Features

1-port RS-232/422/485 Ethernet device servers
Power supply accepts wide voltage input range DC 5-36V
Support TCP server/client, UDP server/client,https client, Virtual COM
Support Modbus RTU to Modbus TCP
Support flow control CTS/RTS, XON/XOFF
Support 1 RS-232, RS-485/422 3IN1 serial port to 1 10/100Base-T(X) self-adaptive Ethernet interface
Configuration via Web Server page, AT commands, and Windows Utility
MQTT/SSL special firmware (contact sales)

Specifications

Categories	Cellular & Network Communication
Manufacturer/Brand	USR IOT
Ethernet ports	LAN/WAN
Ethernet Protocols	10/100 Mbps
Serial Standard	RS232, RS422, RS485
Comm. Method	Serial
Comm. Protocol	ARP, DHCP, DNS, HTTP, HTTPD Client, ICMP, IP, TCP, UDP, Web socket
Supply Voltage	5-36 Vdc
Operating Temperature	-40° to 185°F, -40° to 85°C
Width (in)	3.19
Depth (in)	0.95
Height (in)	3.46
Width (mm)	81.00
Depth (mm)	24.00
Height (mm)	88.00
Weight (kg)	0.570
Weight (lbs)	1.25
Safety Approvals	FCC, RoHS
Safety Standards	CE
Non-Stock Lead Time	2 Weeks

Downloads

Additional Information

Device	Device Server
Type	1 Port \| Ethernet
References	USR IOT
