09-3482-700-08

SKU: 09-3482-700-08

BRAND: Binder

In Stock
R 508.30_{(inc VAT)}
R 442.00_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

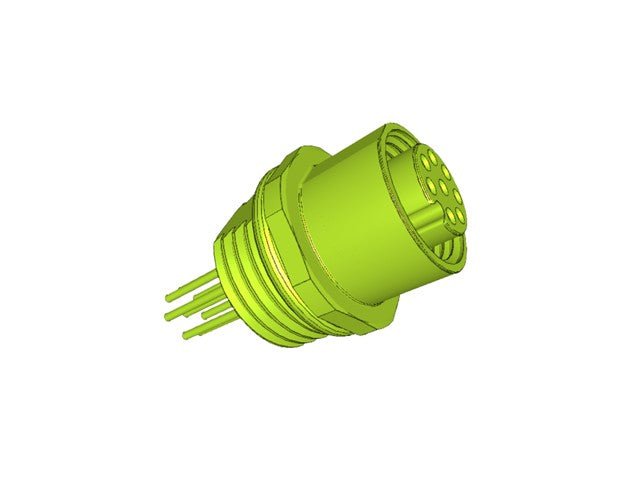

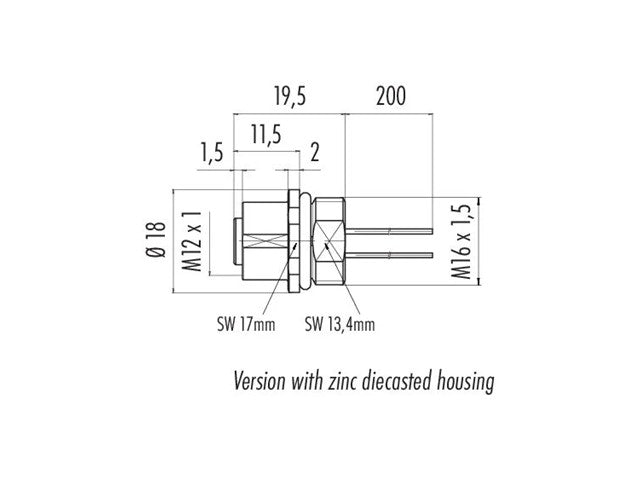

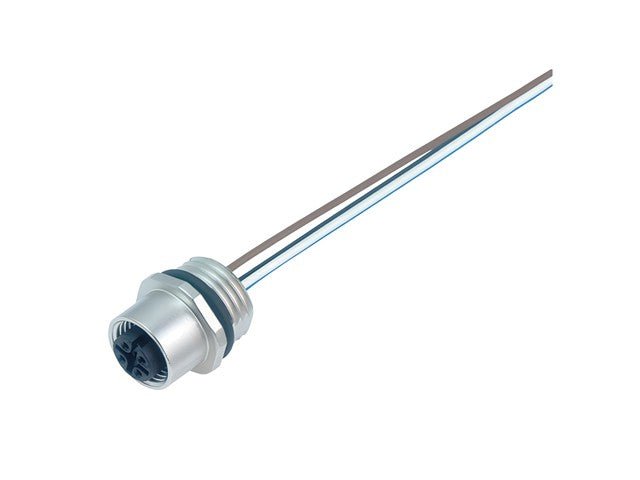

Circular Connector M12 A COD Female 8P Screw Lock Front Panel Entry Rear Mount with Lead M16X1,5 Fixing Thread IP68

M12 Circular Connector

Specifications

Connector design : Female panel mount connector
Wire length : 0.2 m
Version : Connector socket straight
Connector locking system : screw
Termination single : wires
Degree of protection : IP68
Cross-sectional area : 0.25 mm2 / AWG 24
Temperature range from/to : -40 °C / 85 °C
Mechanical operation : > 100 Mating cycles
Weight (g) : 16.63

Electrical parameters

Rated voltage : 30 V
Rated impulse voltage : 800 V
Rated current (40 °C) : 1.5 A
Insulation resistance : > 108 Ω
Pollution degree : IP68
Overvoltage category : II
Insulating material group : III
EMC compliance : unshielded

Downloads

Datasheet - 09-3482-700-08

Additional Information

Device	Connector
Type	M12 \| Circular
