99 - 0639 - 29 - 05 - Circular Connectors -

99-0639-29-05

Name: 99-0639-29-05 - Communica [Part No: 99-0639-29-05]
Brand: Binder
SKU: 99-0639-29-05
Price: 455 ZAR
Availability: InStock

SKU: 99-0639-29-05

BRAND: Binder

R 523.25_{(inc VAT)}
R 455.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

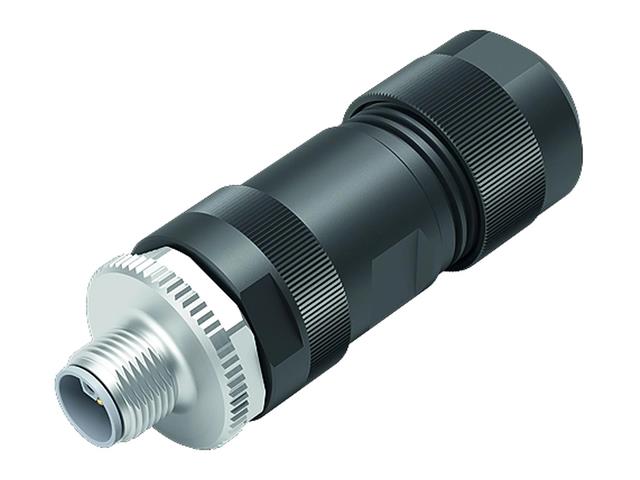

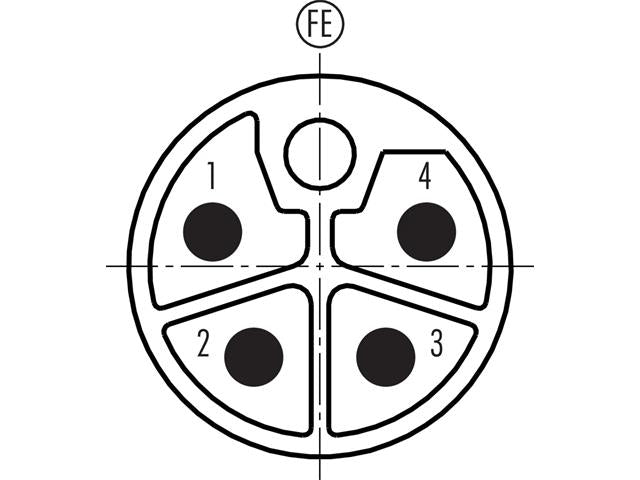

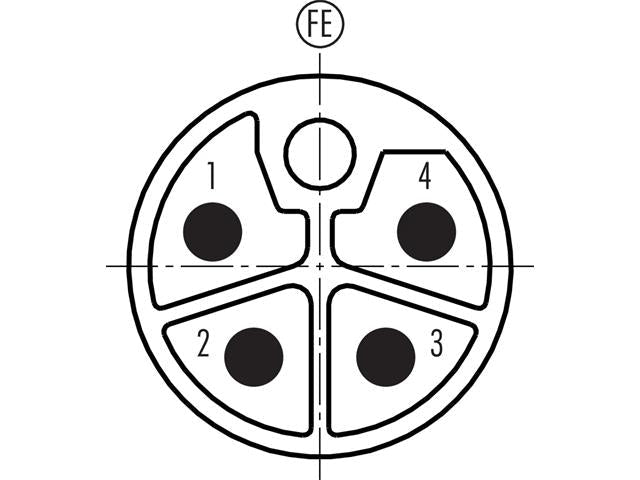

Circular Connector M12 L COD Cable Male Straight 5 Pole(4+FE) Screw Lock 13mm Cable Entry IP67, UL Approved Max. 16A /63VDC

M12 L COD Cable Circular Connector

Specifications

Connector design	Male cable connector
Type standard	DIN EN IEC 61076-2-111:2018-10;VDE 0687-76-2-111:2018-10
Coding	L-coded
Version	Connector pin straight
Connector locking system	screw
Termination	screw clamp
Degree of protection	IP67
Connection cross-section	max. 1.50 mm² with ferrule / max. 2.50 mm² without ferrule / AWG 16 with wire-end ferrule / AWG 14 without wire-end ferrule

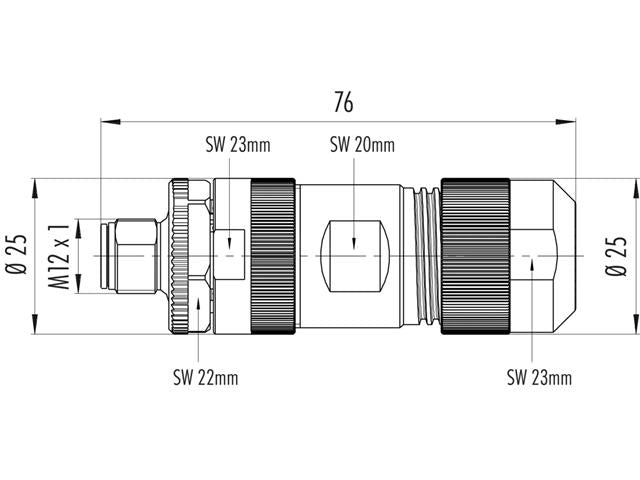

Cable outlet	8.0-13.0 mm
Temperature range from/to	-40 °C / 105 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	42.89
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	63 V
Rated impulse voltage	1500 V
Rated current	12 A (at 1.5 mm²/AWG 16) / 16 A (at 2.5 mm²/AWG 14)
Insulation resistance	> 10¹⁰ Ω
Pollution degree	3
Overvoltage category	III
Insulating material group	I
EMC compliance	unshielded

Housing material	PA
Contact body material	PA (UL94 V-0)
Contact material	CuZn (brass)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)

Downloads

Datasheet - 99-0639-29-05

Additional Information

Device	Connector
Type	M12 \| L COD \| Cable \| Circular

Enhance your connectivity with the M12 L COD Cable Male Connector (99-0639-29-05). Boasting a robust screw lock design and IP67 protection, it ensures reliable performance in tough environments. With a high current rating of 16A and a wide temperature range, this connector is perfect for industrial applications. Upgrade your equipment with this durable and efficient solution today!
