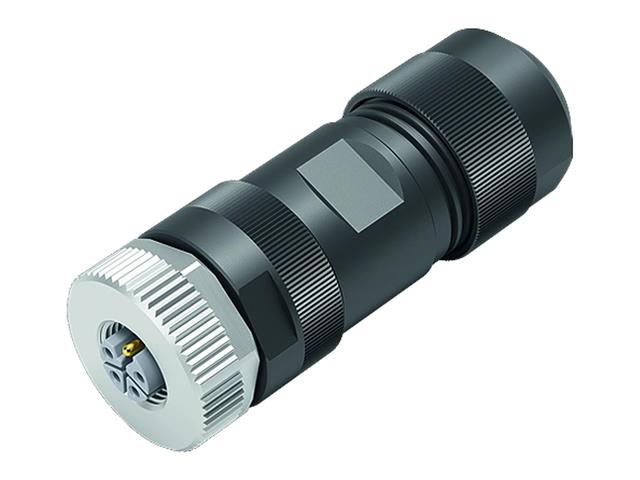

Circular Connector M12 L COD Cable Female Straight 5 Pole(4+FE) Screw Lock 13mm Cable Entry IP67, UL Approved Max. 16A /63VDC
M12 L COD Cable Circular Connector
Specifications
| Connector design |
Female cable connector |
| Type standard |
DIN EN IEC 61076-2-111:2018-10;VDE 0687-76-2-111:2018-10 |

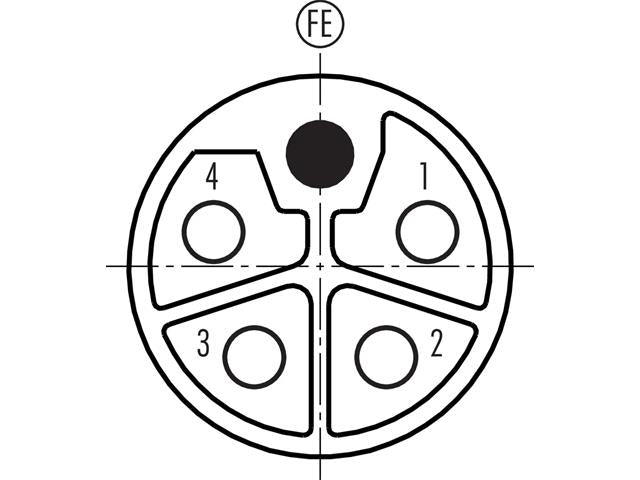

| Coding |
L-coded |
| Version |
Connector socket straight |
| Connector locking system |
screw |
| Termination |
screw clamp |
| Degree of protection |
IP67 |
| Connection cross-section |
max. 1.50 mm² with ferrule / max. 2.50 mm² without ferrule / AWG 16 with wire-end ferrule / AWG 14 without wire-end ferrule |
| Cable outlet |
8.0-13.0 mm |
| Temperature range from/to |
-40 °C / 105 °C |
| Mechanical operation |
> 100 Mating cycles |
| Weight (g) |
50.37 |
| Customs tariff number |
85369010 |
| Country of Origin |
DE |
| Rated voltage |
63 V |
| Rated impulse voltage |
1500 V |
| Rated current |
12 A (at 1.5 mm²/AWG 16) / 16 A (at 2.5 mm²/AWG 14) |
| Insulation resistance |
> 1010 Ω |
| Pollution degree |
3 |
| Overvoltage category |
III |
| Insulating material group |
I |
| EMC compliance |
unshielded |
| Housing material |
PA |
| Contact body material |
PA (UL94 V-0) |
| Contact material |
CuZn (brass) |
| Contact plating |
Au (gold) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
Downloads
Additional Information
| Device |
Connector |
| Type |
M12 | L COD Cable | Circular |
Discover the 99-0640-29-05 M12 L COD Circular Connector, designed for reliable connections in harsh environments. With a robust IP67 rating and screw lock mechanism, this female connector ensures durability and safety, handling up to 16A at 63VDC. Perfect for industrial applications, it offers a temperature range from -40°C to 105°C, making it your go-to solution for reliable performance.
