XY-USB173

Name: XY-USB173 - Communica [Part No: XY-USB173]
Brand: Xytron
SKU: XY-USB173
Price: 5.90 ZAR
Availability: InStock

SKU: XY-USB173

BRAND: Xytron

R 6.79_{(inc VAT)}
R 5.90_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Computer Connectors

Category: USB Connectors

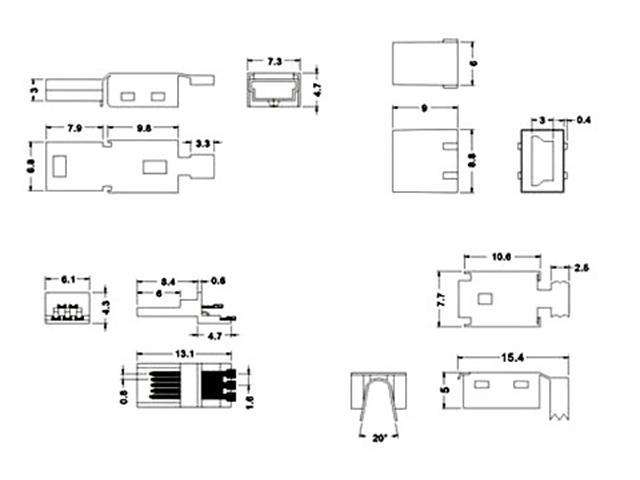

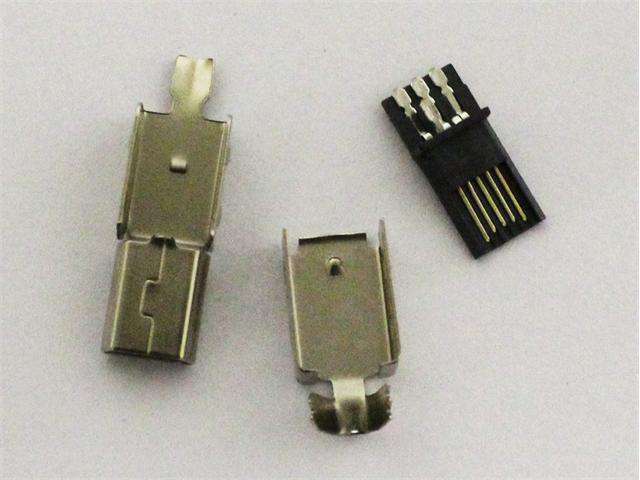

USB Plug Mini "A" Type 5Pin Solder and only 4 Connections on Input without Plastic Cover

Overview

Features

Specification

Contact Resistance	10 mΩ max
Insulator Resistance	500 MΩ min. @DC 500V
Current Rating	1 A max
Voltage Rating	25V DC
Dielectric Strength	AC 500V for 1 minute
Contact Material	Brass
Housing	PBT & 30% Glass Fiber (UL94V-0)

Elevate your connectivity with the XY-USB173 Mini USB Plug. Designed for durability with brass contacts and a robust PBT housing, this efficient 5-pin connector ensures reliable performance with a 1A current rating. Ideal for compact applications, it delivers exceptional resistance and strength, making it the perfect choice for your electronic projects.
