XY-USB178A-II

SKU: XY-USB178A-II

BRAND: Communica

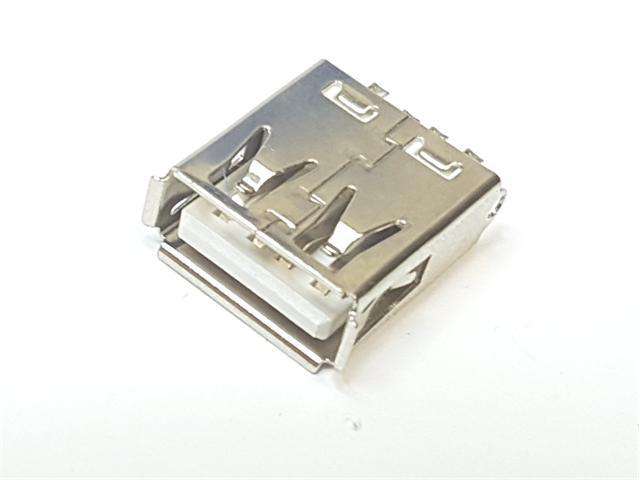

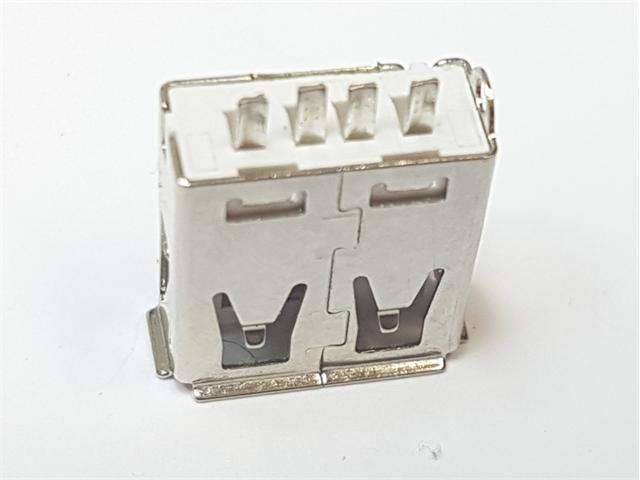

USB “A” Type Female Connector Solder Size-A - similar to XY-USB178A but slightly Shorter and Solder Tabs aligned differently

Overview

Features

Specification



Contact Resistance 10 mΩ max
Insulator Resistance 500 MΩ min. @DC 500V
Current Rating 1 A max
Voltage Rating 25V DC
Dielectric Strength AC 500V for 1 minute
Contact Material Brass
Housing PBT & 30% Glass Fiber (UL94V-0)
