XY3106A-20-22S - MIL-Spec / MIL-Type -
XY3106A-20-22S - MIL-Spec / MIL-Type -
XY3106A-20-22S - MIL-Spec / MIL-Type -
XY3106A-20-22S - MIL-Spec / MIL-Type -

XY3106A-20-22S

SKU: XY3106A-20-22S

BRAND: Amphenol


In Stock
R 631.06 (inc VAT)
R 548.75 (ex VAT)

Collections: Connectors

Type: MIL-Spec / MIL-Type

Category: Circular MIL DTL-5015/C-5015 Connectors

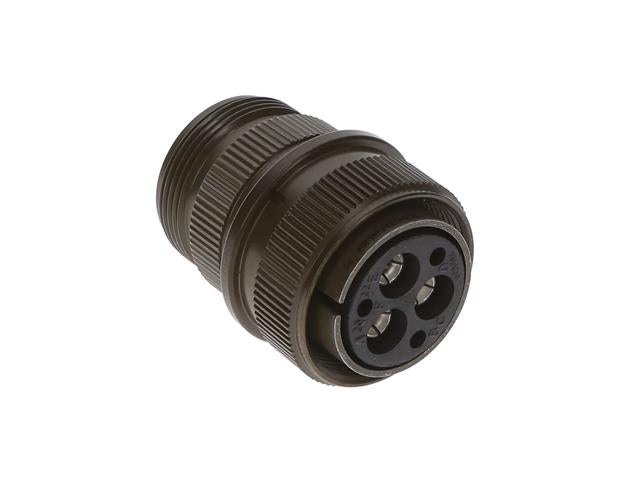

Circular Connector MIL-DTL-5015 Style Screw Lock Cable End Plug Optional Cabl Clamp 6 Pole 3x #16/5x #8 Contacts. Female Solder. 13A/46A 500VAC/700VDC (MS3106A20-22S)(97-3106A-20-22S)

MIL-DTL-5015 Style Circular Connector

Feature(s)

Number of Positions
6
Grade
Military
Qualification
MIL-DTL-5015
Shell Size - Insert
20-22
Mounting Type
Free Hanging (In-Line)
Termination
Solder Cup
Fastening Type
Threaded
Orientation
N (Normal)
Primary Material
Metal
Shell Material
Aluminum Alloy
Shell Finish
Olive Drab Chromate over Cadmium
Contact Finish - Mating
Silver
Color
Olive Drab
Ingress Protection
Environment Resistant
Features
Backshell, Coupling Nut
Shielding
Unshielded
Current Rating (Amps)
13A, 46A
Operating Temperature
-55°C ~ 125°C
Contact Material
Copper Alloy
Insert Material
Neoprene
Applications
Marine, Military

Additional Information

Device Connector
Type MIL-DTL-5015 Style | Circular
