XY3106A-22-14S

Name: XY3106A-22-14S - Communica [Part No: XY3106A-22-14S]
Brand: Xytron
SKU: XY3106A-22-14S
Price: 685.36 ZAR
Availability: OutOfStock

SKU: XY3106A-22-14S

BRAND: Xytron

Sold Out
R 788.16_{(inc VAT)}
R 685.36_{(ex VAT)}

Collections: Connectors

Type: MIL-Spec / MIL-Type

Category: Circular MIL DTL-5015/C-5015 Connectors

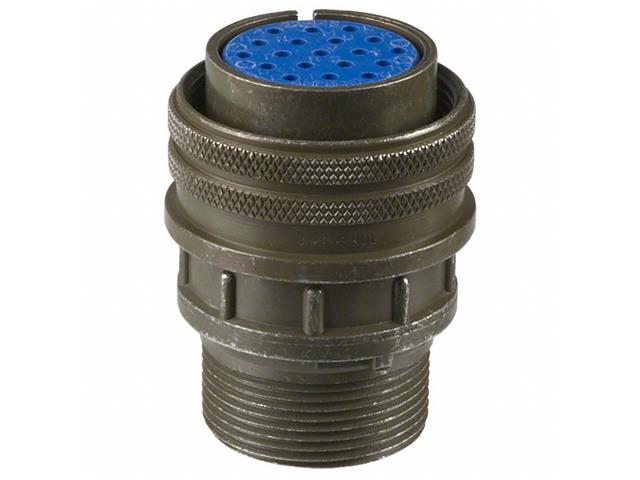

Circular Connector MIL-DTL-5015 Style Screw Lock Cable End Plug Optional Cable Clamp 19 Pole #16 Contacts. Female Solder. 13A 500VAC/700VDC (MS3106A22-14S)(97-3106A-22-14S)

MIL-DTL-5015 Circular Connector

Specifications

RoHS:	N
Number of Positions:	19 Position
Contact Gender:	Socket (Female)
Insert Arrangement:	22-14
Product:	Plugs
Shell Size:	22
Shell Style:	In-Line
MIL Type:	MIL-DTL-5015
Termination Style:	Solder
Mounting Style:	Free Hanging
Current Rating:	13 A
Contact Plating:	Silver
Contact Material:	Copper Alloy
Series:	MS 5015
Brand:	Amphenol Industrial
Mating Style:	Bayonet
Mounting Angle:	Straight
Product Type:	Circular MIL Spec Connector
Qualification:	EREL
Shell Material:	Aluminum Alloy
Shell Plating:	Olive Drab Zinc
Subcategory:	Circular Connectors
Tradename:	5015
Voltage Rating:	700 V
Wire Gauge:	22 AWG to 16 AWG

Additional Information

Device	Connector
Type	MIL-DTL-5015 \| Circular

Discover the XY3106A-22-14S Circular Connector, designed for robust performance with 19 positions and a durable aluminum shell. This MIL-DTL-5015 connector ensures reliable solder termination, supporting 13A at 700V, perfect for demanding applications. Upgrade your connectivity with this high-quality, bayonet-mating connector from Amphenol Industrial, engineered for longevity and efficiency.
