XY3106A-22-19P

Name: XY3106A-22-19P - Communica [Part No: XY3106A-22-19P]
Brand: Xytron
SKU: XY3106A-22-19P
Price: 543.25 ZAR
Availability: OutOfStock

SKU: XY3106A-22-19P

BRAND: Xytron

Sold Out
R 624.74_{(inc VAT)}
R 543.25_{(ex VAT)}

Collections: Connectors

Type: MIL-Spec / MIL-Type

Category: Circular MIL DTL-5015/C-5015 Connectors

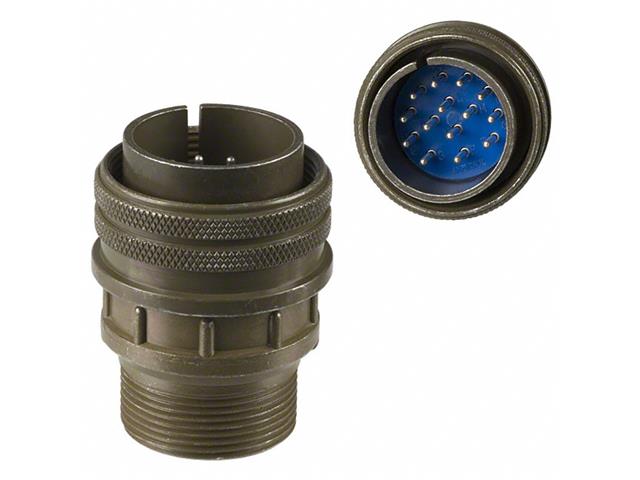

Circular Connector MIL-DTL-5015 Style Screw Lock Cable End Plug Optional Cable Clamp 14 Pole #16 Contacts. Male Solder. 13A 500VAC/700VDC (MS3106A22-19P)(97-3106A-22-19P)

Circular Connector MIL-DTL-5015

Specifications

RoHS:	N
Number of Positions:	14 Position
Contact Gender:	Pin (Male)
Insert Arrangement:	22-19
Product:	Plugs
Shell Size:	22
Shell Style:	In-Line
MIL Type:	MIL-DTL-5015
Termination Style:	Solder
Mounting Style:	Free Hanging
Current Rating:	13 A
Contact Plating:	Silver
Contact Material:	Copper Alloy
Series:	MS 5015
Brand:	Amphenol Industrial
Mating Style:	Bayonet
Mounting Angle:	Straight
Product Type:	Circular MIL Spec Connector
Qualification:	EREL
Shell Material:	Aluminum Alloy
Shell Plating:	Olive Drab Zinc
Subcategory:	Circular Connectors
Tradename:	5015
Voltage Rating:	700 V
Wire Gauge:	22 AWG to 16 AWG

Additional Information

Device	Connector
Type	MIL-DTL-5015 \| Circular

The XY3106A-22-19P Circular Connector is a robust, MIL-DTL-5015 style plug designed for reliability in demanding environments. With 14 solder contacts, a 13A current rating, and 700V voltage capacity, it ensures secure connections for your applications. Crafted from durable aluminum alloy with silver-plated contacts, this connector offers exceptional performance and longevity. Upgrade your connectivity solutions with this high-quality, versatile connector today!
