XY3106A-22-23P

Name: XY3106A-22-23P - Communica [Part No: XY3106A-22-23P]
Brand: Xytron
SKU: XY3106A-22-23P
Price: 613.25 ZAR
Availability: OutOfStock

SKU: XY3106A-22-23P

BRAND: Xytron

Sold Out
R 705.24_{(inc VAT)}
R 613.25_{(ex VAT)}

Collections: Connectors

Type: MIL-Spec / MIL-Type

Category: Circular MIL DTL-5015/C-5015 Connectors

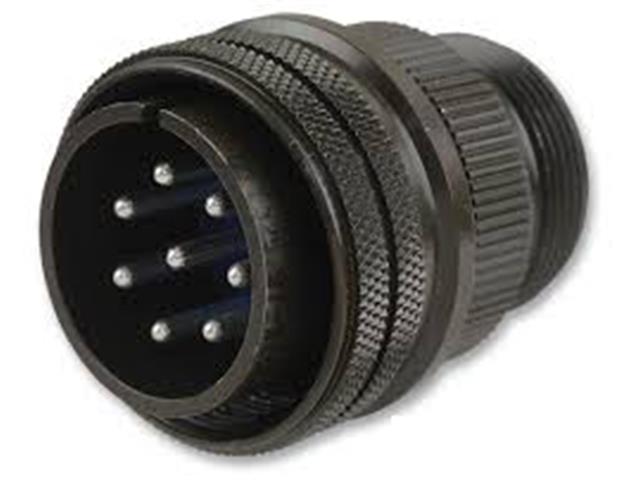

Circular Connector MIL-DTL-5015 Style Screw Lock Cable End Plug Optional Cable Clamp 8 Pole #12 Contacts. Male Solder. 23A 500VAC/700VDC (MS3106A22-23P)(97-3106A-22-23P)

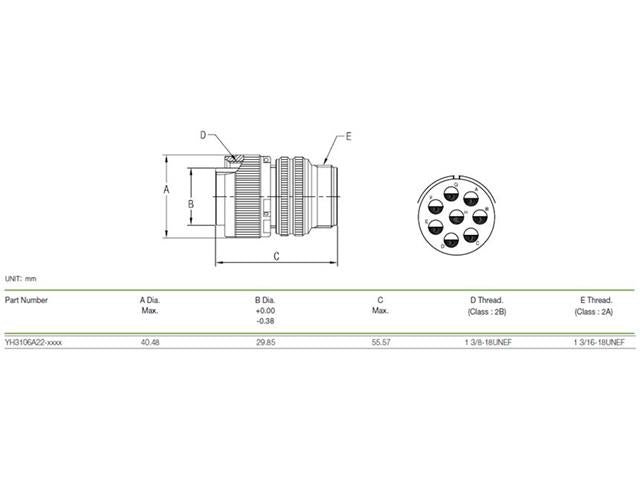

MIL-DTL-5015 Circular Connector

Specifications

RoHS:	N
Number of Positions:	8 Position
Contact Gender:	Pin (Male)
Insert Arrangement:	22-23
Product:	Plugs
Shell Size:	22
Shell Style:	In-Line
MIL Type:	MIL-DTL-5015
Termination Style:	Solder
Mounting Style:	Free Hanging
Current Rating:	23 A
Contact Plating:	Silver
Contact Material:	Copper Alloy
Series:	MS 5015
Brand:	Amphenol Industrial
Mating Style:	Bayonet
Mounting Angle:	Straight
Product Type:	Circular MIL Spec Connector
Qualification:	EREL
Shell Material:	Aluminum Alloy
Shell Plating:	Olive Drab Zinc
Subcategory:	Circular Connectors
Tradename:	5015
Wire Gauge:	14 AWG to 12 AWG

Additional Information

Device	Connector
Type	MIL-DTL-5015 \| Circular

Upgrade your connectivity with the XY3106A-22-23P, a robust MIL-DTL-5015 circular connector designed for reliable performance. Featuring 8 solder contacts and a durable aluminum alloy shell, this connector ensures secure connections in demanding environments. Ideal for various industrial applications, it offers a current rating of 23A, providing you with the reliability you need for optimal performance.
