XY3106A-22-23S

Name: XY3106A-22-23S - Communica [Part No: XY3106A-22-23S]
Brand: Xytron
SKU: XY3106A-22-23S
Price: 675.72 ZAR
Availability: OutOfStock

SKU: XY3106A-22-23S

BRAND: Xytron

Sold Out
R 777.08_{(inc VAT)}
R 675.72_{(ex VAT)}

Collections: Connectors

Type: MIL-Spec / MIL-Type

Category: Circular MIL DTL-5015/C-5015 Connectors

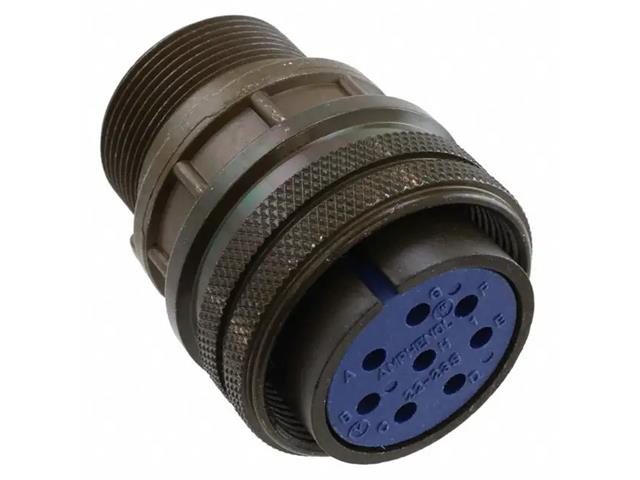

Circular Connector MIL-DTL-5015 Style Screw Lock Cable End Plug Optional Cable Clamp 8 Pole #12 Contacts. Female Solder. 23A 500VAC/700VDC (MS3106A22-23S)(97-3106A-22-23S)

MIL-DTL-5015 Circular Connector

Specifications

RoHS:	N
Number of Positions:	8 Position
Contact Gender:	Socket (Female)
Insert Arrangement:	22-23
Product:	Plugs
Shell Size:	22
Shell Style:	In-Line
MIL Type:	MIL-DTL-5015
Termination Style:	Solder
Mounting Style:	Free Hanging
Current Rating:	23 A
Contact Plating:	Silver
Contact Material:	Copper Alloy
Series:	MS 5015
Brand:	Amphenol Industrial
Mating Style:	Bayonet
Mounting Angle:	Straight
Product Type:	Circular MIL Spec Connector
Qualification:	EREL
Shell Material:	Aluminum Alloy
Shell Plating:	Olive Drab Zinc
Subcategory:	Circular Connectors
Tradename:	5015
Voltage Rating:	1.25 kV, 700 V
Wire Gauge:	14 AWG to 12 AWG

Additional Information

Device	Connector
Type	MIL-DTL-5015 \| Circular

Discover the XY3106A-22-23S Circular Connector, designed for reliable performance with 8 positions and a robust screw lock mechanism. Ideal for high-voltage applications, it features a durable aluminum alloy shell and silver-plated contacts for optimal conductivity. Upgrade your connections with this MIL-DTL-5015 certified plug, ensuring safety and efficiency in demanding environments.
