XY3106A-24-2P

Name: XY3106A-24-2P - Communica [Part No: XY3106A-24-2P]
Brand: Xytron
SKU: XY3106A-24-2P
Price: 696.31 ZAR
Availability: OutOfStock

SKU: XY3106A-24-2P

BRAND: Xytron

Sold Out
R 800.76_{(inc VAT)}
R 696.31_{(ex VAT)}

Collections: Connectors

Type: MIL-Spec / MIL-Type

Category: Circular MIL DTL-5015/C-5015 Connectors

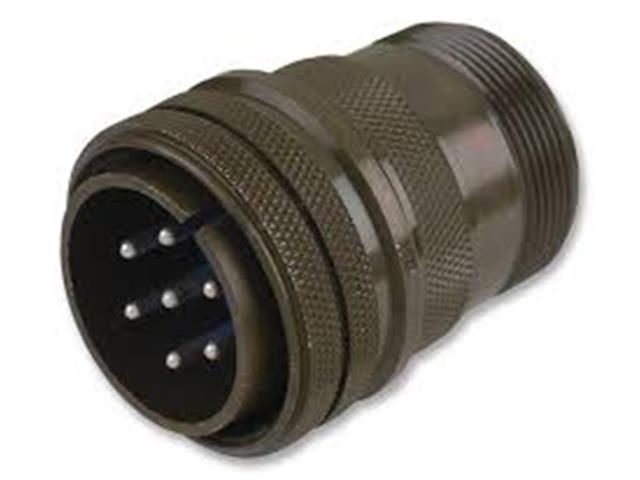

Circular Connector MIL-DTL-5015 Style Screw Lock Cable End Plug Optional Cable Clamp 7 Pole #12 Contacts Male Solder. 23A 900VAC/1,250VDC (MS3106A24-2P)(97-3106A-24-2P)

MIL-DTL-5015 Circular Connector

Specifications

Number of Positions:	7 Position
Contact Gender:	Pin (Male)
Insert Arrangement:	24-02
Product:	Plugs
Shell Size:	24
Shell Style:	In-Line
MIL Type:	MIL-DTL-5015
Termination Style:	Solder
Mounting Style:	Free Hanging
Current Rating:	23 A
Contact Plating:	Silver
Contact Material:	Copper Alloy
Series:	MS 5015
Brand:	Amphenol Industrial
Mating Style:	Bayonet
Mounting Angle:	Straight
Product Type:	Circular MIL Spec Connector
Shell Material:	Aluminum Alloy
Shell Plating:	Olive Drab Zinc
Subcategory:	Circular Connectors
Tradename:	5015
Wire Gauge:	14 AWG to 12 AWG

Additional Information

Device	Connector
Type	MIL-DTL-5015 \| Circular

Discover the XY3106A-24-2P Circular Connector, designed for reliable performance in demanding environments. With a 7-pole male solder configuration and a robust aluminum alloy shell, this MIL-DTL-5015 connector ensures secure connections and high conductivity. Perfect for industrial applications, it supports 23A at 900VAC/1,250VDC, making it an ideal choice for your next project. Elevate your connectivity with this durable, high-quality solution.
