XY3106A-24-2S

Name: XY3106A-24-2S - Communica [Part No: XY3106A-24-2S]
Brand: Xytron
SKU: XY3106A-24-2S
Price: 724.25 ZAR
Availability: OutOfStock

SKU: XY3106A-24-2S

BRAND: Xytron

Sold Out
R 832.89_{(inc VAT)}
R 724.25_{(ex VAT)}

Collections: Connectors

Type: MIL-Spec / MIL-Type

Category: Circular MIL DTL-5015/C-5015 Connectors

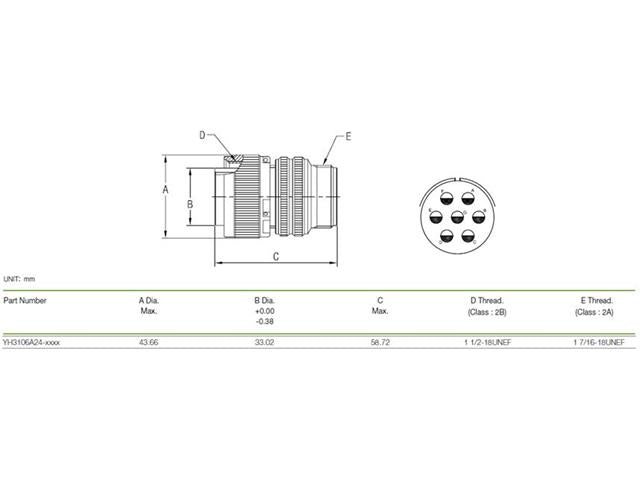

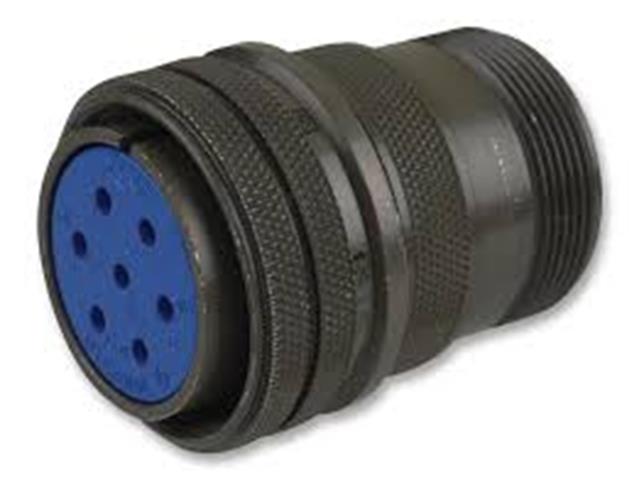

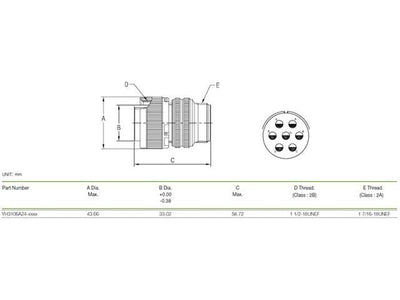

Circular Connector MIL-DTL-5015 Style Screw Lock Cable End Plug Optional Cable Clamp 7 Pole #12 Contacts. Female Solder. 23A 900VAC/1,250VDC (MS3106A24-2S)(97-3106A-24-2S)

MIL-DTL-5015 Circular Connector

Specifications

RoHS:	N
Number of Positions:	16 Position
Contact Gender:	Pin (Male)
Insert Arrangement:	24-05
Product:	Plugs
Shell Size:	24
Shell Style:	In-Line
MIL Type:	MIL-DTL-5015
Termination Style:	Solder
Mounting Style:	Free Hanging
Current Rating:	13 A
Contact Plating:	Silver
Contact Material:	Copper Alloy
Series:	MS 5015
Packaging:	Bulk
Brand:	Amphenol Industrial
Mating Style:	Bayonet
Mounting Angle:	Straight
Product Type:	Circular MIL Spec Connector
Qualification:	EREL
Shell Material:	Aluminum Alloy
Shell Plating:	Olive Drab Zinc
Subcategory:	Circular Connectors
Tradename:	5015
Wire Gauge:	22 AWG to 16 AWG

Additional Information

Device	Connector
Type	MIL-DTL-5015 \| Circular

Upgrade your connections with the XY3106A-24-2S Circular Connector, designed for durability and performance. This MIL-DTL-5015 compliant plug features 16 positions, a robust aluminum shell, and solder termination for secure, reliable connectivity. Ideal for industrial applications, it supports up to 13A and is perfect for those seeking high-quality, military-grade connectors.
