3LD2704 - 0TK51 - Industrial Automation - 4011209403604

3LD2704-0TK51

Name: 3LD2704-0TK51 - Communica [Part No: 3LD2704-0TK51]
Brand: Siemens
SKU: 3LD2704-0TK51
Price: 2170 ZAR
Availability: OutOfStock

SKU: 3LD2704-0TK51

BRAND: Siemens

Sold Out
R 2,495.50_{(inc VAT)}
R 2,170.00_{(ex VAT)}

Collections: Electromechanical

Type: Industrial Automation

Category: Isolator Switch

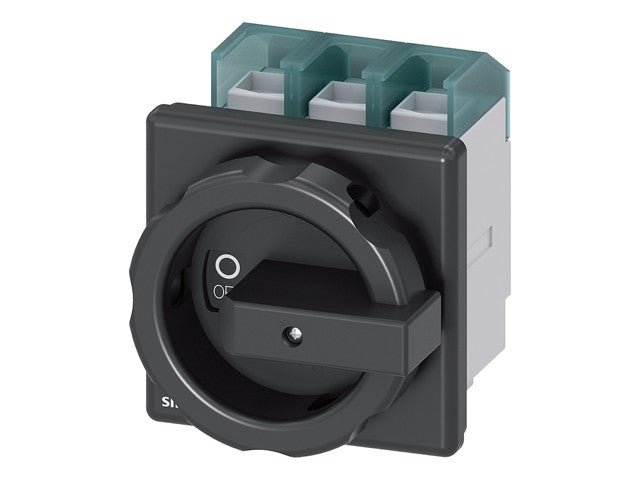

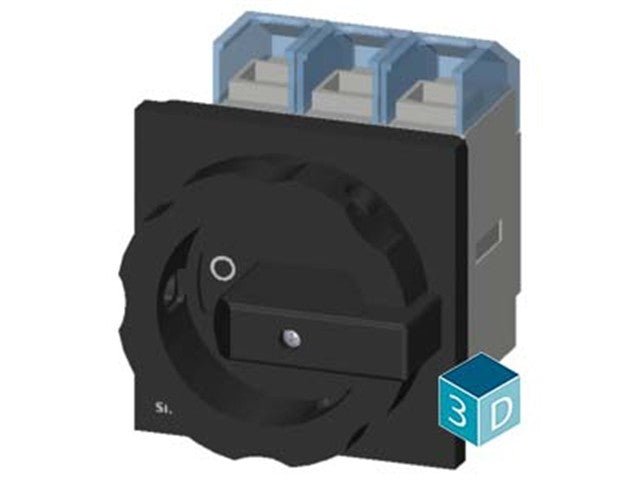

Sentron, Switch Disconnector 3LD, Main Switch, 3-pole, IU: 100 A, Operating Power / At AC-23 A At 400 V: 37 KW

Sentron, Switch Disconnector 3LD

Specifications

Product designation: Switch disconnector, main switch, 3-pole
Brand / series: Siemens SENTRON “3LD” series
Rated current (Iu): 100 A
Poles: 3
Rated insulation voltage: 690 V
Operating power (AC-23 A) at 400 V: 37 kW
Operating power (AC-23 A) at 690 V: 30 kW
Mechanical service life (typical): 100,000 operating cycles
Electrical endurance at AC-23 A / 690 V: 6,000 operating cycles
Surge voltage resistance: 6 kV
Protection class / Degree of protection: IP65 on front
Power loss per pole (at rated current): Approximately 7.5 W

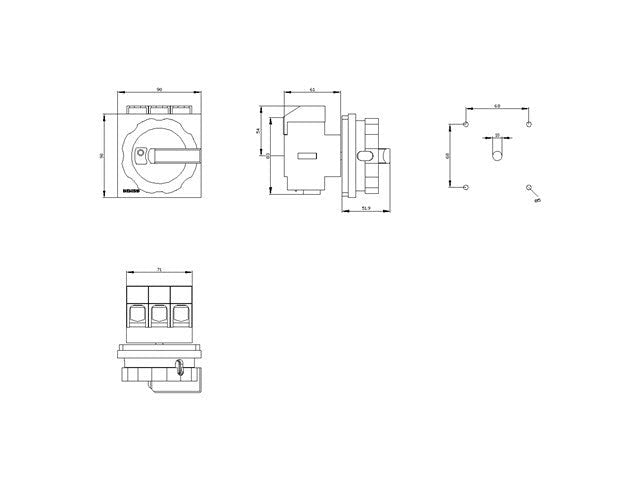

Mounting type: Front-mounted, 4-hole mounting of handle
Connection conductor cross-section (main circuit): Solid: 4 – 50 mm² • Stranded: 4 – 35 mm²
Ambient temperature (operation): –25 °C to +55 °C
Weight (approx.): 0.49 kg
Function: Main and emergency-off switch for motor or power isolation applications

Downloads

Datasheet

Additional Information

Device	Disconnector
Type	Sentron \| Switch \| Disconnector \| 3LD
