6ES7515 - 2UN03 - 0AB0 - Industrial Automation - 4047623412434

6ES7515-2UN03-0AB0

Name: 6ES7515-2UN03-0AB0 - Communica [Part No: 6ES7515-2UN03-0AB0]
Brand: Siemens
SKU: 6ES7515-2UN03-0AB0
Price: 72350 ZAR
Availability: OutOfStock

SKU: 6ES7515-2UN03-0AB0

BRAND: Siemens

Sold Out
R 83,202.50_{(inc VAT)}
R 72,350.00_{(ex VAT)}

Collections: Electromechanical

Type: Industrial Automation

Category: PLC & DCS

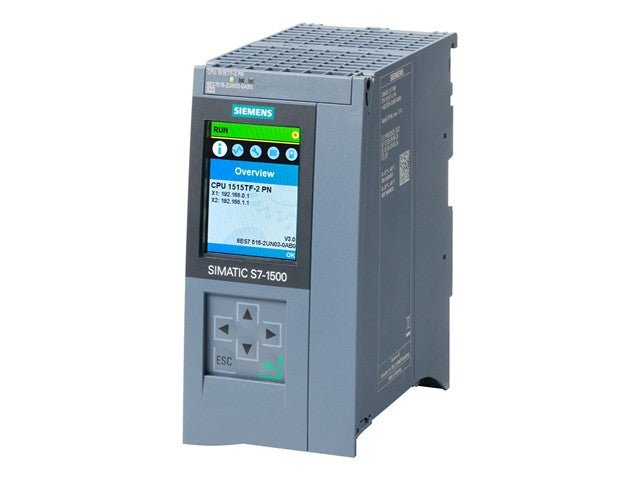

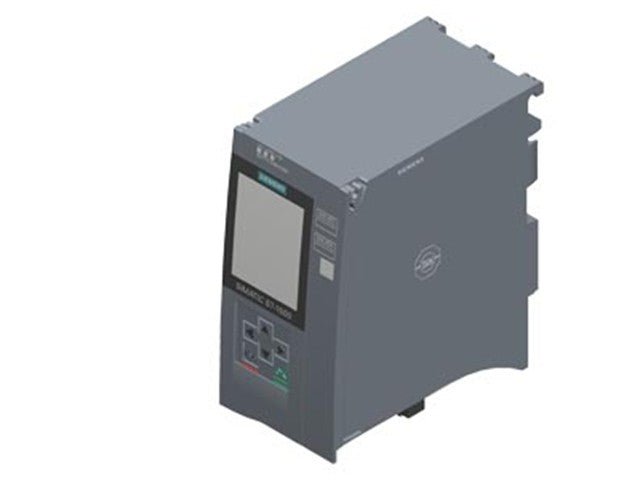

SIMATIC S7-1500T, CPU 1515TF-2 PN, Central Processing Unit With 1.5 MB Work Memory For Program And 4.5 MB For Data, 1st Interface: PROFINET IRT With 2-port Switch

SIMATIC S7-1500T, CPU 1515TF-2 PN

Specifications

Product type designation: CPU 1515TF-2 PN
Work memory (for program): 1.5 MB
Work memory (for data): 4.5 MB
Supply voltage (DC): 24 V DC (rated)
Permissible supply range: 19.2 V to 28.8 V DC
Current consumption (rated): Approximately 0.83 A
Inrush current (maximum): Approximately 1.15 A
Power loss (typical): Approximately 7.9 W
CPU processing time (bit operations): Approximately 6 ns
CPU processing time (word operations): Approximately 7 ns
Integrated PROFINET interfaces: 2 (first interface supports IRT switch)
Memory card slot: 1 slot for SIMATIC memory card (required)

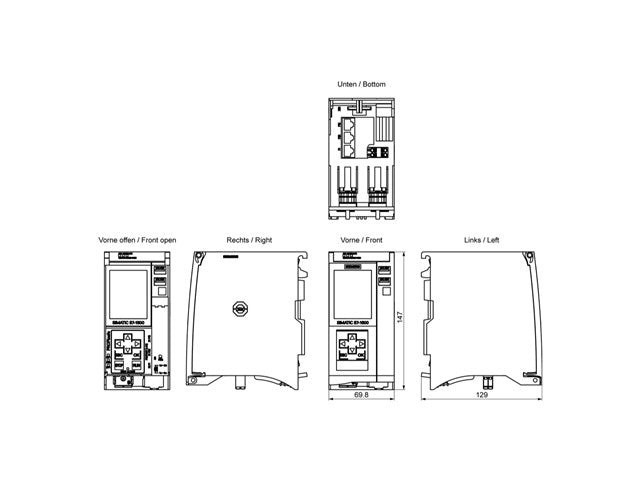

Dimensions (W × H × D): 70 mm × 147 mm × 129 mm
Weight : Approximately 0.515 kg
Mounting type: DIN-rail (S7-1500 standard configuration)
Operating temperature: 0 °C to +60 °C
Function: Central processing unit with integrated motion control, safety, and PROFINET communication for S7-1500 automation systems

Downloads

Datasheet

Additional Information

Device	CPU
Type	SIMATIC \| S7-1500T \| CPU \| 1515TF-2 PN
