3RK2400-0GQ20-0AA3

Name: 3RK2400-0GQ20-0AA3 - Communica [Part No: 3RK2400-0GQ20-0AA3]
Brand: Siemens
SKU: 3RK2400-0GQ20-0AA3
Price: 3169 ZAR
Availability: OutOfStock

SKU: 3RK2400-0GQ20-0AA3

BRAND: Siemens

Sold Out
R 3,644.35_{(inc VAT)}
R 3,169.00_{(ex VAT)}

Collections: Electromechanical

Type: Industrial Automation

Category: Safety IO Modules

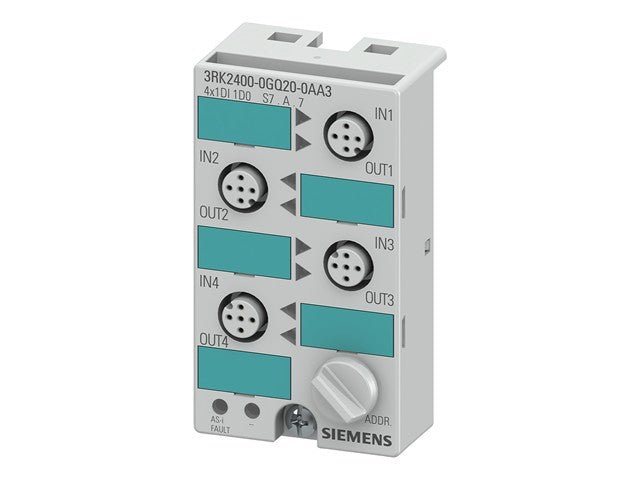

AS-i Compact Module K45 Digital A/B Slave 4 x (1 DI/1 DQ), IP67 4 x 1 Input/1 Output 4 x M12 Socket

AS-i Compact Digital Module

Specifications

Product / Model: AS-Interface compact module K45 digital A/B slave, 4 × (1 DI / 1 DQ)
RS Online
Protection / Enclosure| IP67 (suitable for field installation, dust tight and able to withstand water immersion)
I/O Configuration: 4 sockets; each socket provides 1 digital input + 1 digital output (total 4 DI + 4 DQ)
Connection Type: M12 screw-type terminals / M12 sockets for I/O
AS-Interface Spec / Slave Type: Type: A/B slave, spec version 3.0
AS-Interface ID / ID2 Code: A / 7 code (“ID / ID2 code A / 7”)
Supply / Operating Voltage: AS-Interface operating voltage: ~26.5 … 31.6 V DC
Total Current for All I/O: Max 200 mA for all inputs and outputs combined
AS-Interface Input Current: Up to ~270 mA (for module + AS-i bus)
Output Type: Digital outputs, PNP transistor type; short-circuit-protected
Input Type: Digital inputs accepting 2-wire & 3-wire sensors; input switching level “High” ≥ 10 V; input current for “high” typical ~6 mA
Ground / Screen Terminal: Ground terminal via PIN 5 on M12 sockets; flat tab sleeve available; module includes built-in polarity reversal protection
Addressing: Front addressing socket; module delivered without mounting plate
Ambient Temperature Range: Operating: −25 °C … +85 °C; Storage: −40 °C … +85 °C
Mechanical Dimensions: Width: 45 mm; Height: 80 mm; Depth: 30 mm
Mounting: Mounting plate required (Siemens mounting plates 3RK1901-2EA00 or 3RK1901-2DA00) for DIN-rail or wall mounting; module can be snapped on or mounted via mounting plate.
Indicators / LEDs: Yellow LEDs for I/O status; green/red LED for AS-Interface / diagnostics
Shock / Vibration: Shock resistance: 15 g / 11 ms
Certifications / Approvals: General product approval, EMC conformity, marine / shipping confirmations; RoHS compliant; country of origin Czech Republic
Weight / Packaging: Net weight ~ 0.089 kg; Packaging dims ~ 52 × 107 × 46 mm

Downloads

Datasheet

Additional Information

Device	Module
Type	AS-i \| Compact \| Digital \| Module
