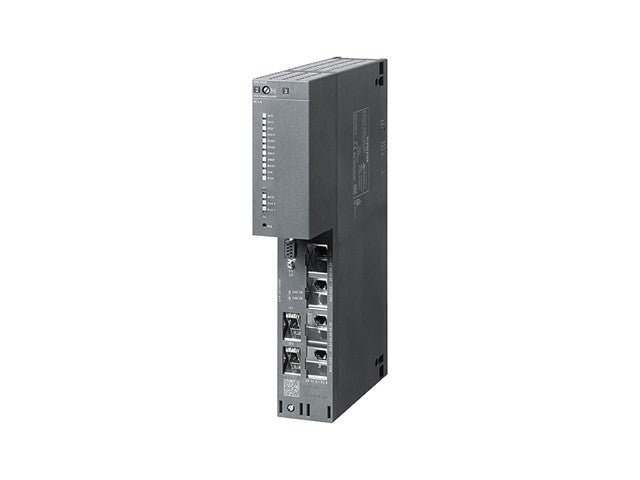

SIMATIC CPU 410-5H Process Automation, Central Unit For S7-400 And S7-400H/F/FH; 5 Interfaces: 2x PN, 1x DP, 2x For Sync Modules
SIMATIC Process Automation, Central Unit
Specifications
- Product Type / Model: SIMATIC PCS 7, CPU 410-5H Process Automation (also used with S7-400 / S7-400H / S7-400F / S7-400FH)
- HW Functional Status: 2
- Firmware Version: V8.2
- Design / Coating: With conformal coating per ISA-S71.04 severity levels G1, G2, G3; operating ambient temperature up to 70 °C
- Processor Speed: 450 MHz
- Integrated Memory: Program memory: 16 MB; Data memory: 16 MB
- RAM (Work Memory): Max integrated RAM: 48 MB; not expandable
- Battery Backup: Yes; with battery, all data retained; typical backup current ~370 µA (valid at 40 °C)
- Interfaces: • 2 × PROFINET / Ethernet RJ45 • 1 × PROFIBUS DP • 2 × synchronization module slots (plug-in)
- PROFINET / Ethernet Features: Auto-sensing, auto-negotiation, integrated switch; media redundancy supported; 100 Mbps max transmission rate
- I/O / Hardware Configuration: • Up to 21 S7-400 expansion units • Plug-in IMs max 6, IM-460s up to 6, IM-463s up to 4 in stand-alone mode
- Clock / Time Functions: Real-time hardware clock; resolution 1 ms; time drift with battery ≤ ~1.7 s/day with battery; without battery higher drift
- Programming / Engineering Tools: SIMATIC PCS 7 V8.1 / V8.2 or higher; standard S7-400 engineering tools; supports configuration in RUN (“CiR”) for certain functions
- Power Consumption / Supply: From backplane bus 5 V DC: typical ≈ 2 A, max ≈ 2.4 A; Power loss approx. 10 W typical
- Operating Ambient Temperature: 0 °C to +70 °C
- Dimensions (W × H × D): Width: 50 mm; Height: 290 mm; Depth: 219 mm
- Weight: Approx. 1.1 kg
