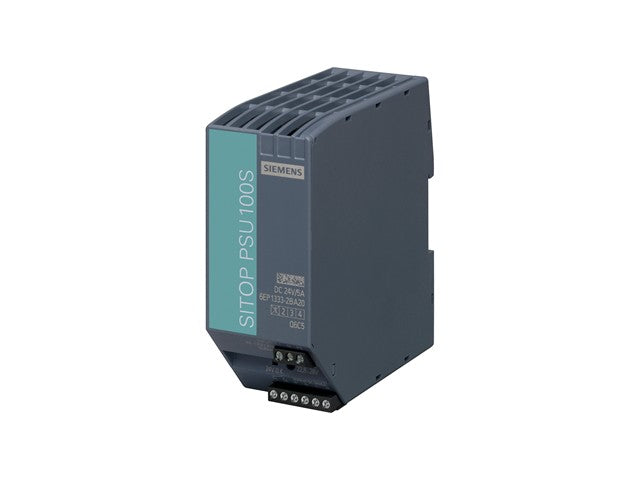

SITOP DIN Rail Stabilized Power Supply Input: 120/230 V AC Output: 24 V DC/5A
SITOP DIN Rail Stabilized Power Supply
Specifications
- Part Number: 6EP1333-2BA20
- Brand: Siemens
- Product Series: SITOP PSU100S
- Product Type: Stabilized DIN rail power supply
- Input Voltage: 120/230 V AC
- Input Voltage Range: 85...132 V AC / 170...264 V AC
- Input Frequency: 50/60 Hz
- Output Voltage: 24 V DC
- Adjustable Output Voltage: 22.8...28 V DC
- Output Current: 5 A
- Maximum Output Current: 6 A
- Power Rating: 144 W
- Efficiency: Approx. 88%
- Residual Ripple: Max. 150 mV
- Mounting Type: DIN rail mounting
- Connection Type: Screw terminals
- Protection Rating: IP20
- Operating Temperature: -25°C to +70°C
- Dimensions: 50 x 125 x 120 mm
- Weight: Approx. 0.4 – 0.5 kg
- Protection Class: Class I
- Overload Capability: 150% rated current up to 5 s/min
- Short-Circuit Protection: Yes
- Overvoltage Protection: Yes
- Status Indication: Green LED “24 V OK”
- Parallel Operation: Supported (up to 2 units)
- Product Lifecycle: Active Product
- Compact industrial switched-mode power supply
- Designed for PLCs, HMIs, sensors, and automation systems
- High efficiency reduces panel heat generation
- Adjustable DC output for flexible industrial applications
- Reliable SITOP PSU100S design for industrial environments
- Suitable for worldwide single-phase AC networks
Downloads
Additional Information
| Device |
Power Supply |
| Type |
SITOP | DIN | Rail | Stabilized | Power Supply |
The 6EP1333-2BA20 SITOP DIN Rail Power Supply delivers reliable 24V DC output with a robust 5A capacity, ensuring optimal performance for your electrical systems. Its versatile input of 120/230V AC makes it ideal for various applications, providing stability and efficiency for your projects. Upgrade your setup with this durable and efficient power supply today!
