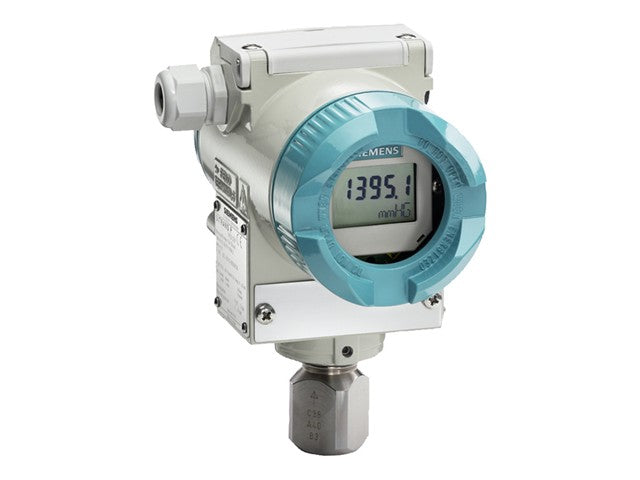

SITRANS P DS III / P410, HART,4-20 MA Transmitter For Pressure
SITRANS P DS III / P410, HART,4-20 MA Transmitter
Specifications
Manufacturer: Siemens
Product family: SITRANS P DS III / P410
Type: Pressure transmitter (Gauge pressure)
Measurement type:
Gauge pressure measurement
Output signal:
4…20 mA analog output
HART communication protocol
Measuring cell filling:
Silicone oil
Pressure range / span:
0.63 … 63 bar g
(9.14 … 914 psi g)
Overload limit:
100 bar
Wetted parts material:
Stainless steel diaphragm
Stainless steel measuring cell
Process connection:
Female thread 1/2-14 NPT
Housing material:
Die-cast aluminum housing
Housing design:
Standard industrial design
Housing cover with viewing window
Explosion protection:
None (standard non-Ex version)
Electrical connection / cable entry:
Cable gland 1/2-14 NPT
Option A01:
Steel mounting bracket included
Option Y01:
Custom measuring range specification
Linear characteristic configured in mbar / kPa / MPa
Option C11:
English plate inscription / labeling
Communication features:
Remote diagnostics via HART
Remote parameter configuration
Protection features:
Industrial EMC protection
Overpressure resistant design
Mounting type:
Process mounting via threaded pressure connection
Applications:
Industrial automation
Process control systems
Oil & gas systems
Chemical processing
Water treatment
Hydraulic pressure monitoring
Additional features:
High accuracy pressure measurement
Suitable for industrial process environments
Supports remote calibration and diagnostics
Additional Information
Device
Transmitter
Type
SITRANS | P | DS | III / P410 | HART | 4-20 MA Transmitter | For | Pressure
Experience precision with the SITRANS P DS III 4-20 MA Pressure Transmitter. Designed for reliable pressure monitoring, this high-performance device ensures accurate readings, enhancing your system's efficiency. Upgrade your industrial processes with the trusted quality of SITRANS technology.
