6FX5002-5CN27-1CF0

Name: 6FX5002-5CN27-1CF0 - Communica [Part No: 6FX5002-5CN27-1CF0]
Brand: Siemens
SKU: 6FX5002-5CN27-1CF0
Price: 6390 ZAR
Availability: OutOfStock

SKU: 6FX5002-5CN27-1CF0

BRAND: Siemens

Sold Out
R 7,348.50_{(inc VAT)}
R 6,390.00_{(ex VAT)}

Collections: Electromechanical

Type: Industrial Automation

Category: Industrial Ethernet Cables

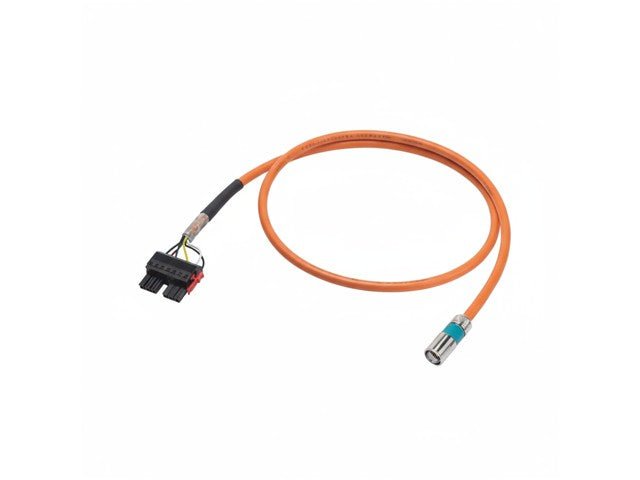

Power Cable Pre-assembled

Power Cable

Specifications

Article / Order Code: 6FX5002-5CN27-1CF0
Product Description: Pre-assembled power cable, type “MOTION-CONNECT 500” for SINAMICS S120 Booksize motor module (C-/D-types)
Cable Type: MOTION-CONNECT 500
Number of Cores × Cross-Section: 4 × 1.5 mm²
Rated Voltage (V0/V according to EN 50395): 600 V / 1000 V
Test Voltage (Power Conductors): 4.0 kV
Test Voltage (Signal Conductors): 2.0 kV
Outer Diameter (Approx.): 8.4 mm
Connector Type (Motor Side): SPEED-CONNECT (Size 0.5)
Converter Connection: SINAMICS S120 Booksize motor module (C/D-types)
Static Bending Radius (Fixed Installation): 21 mm
Dynamic Bending Radius (Flexible Installation): 155 mm
Ambient Temperature (Fixed Cable): −20 °C to +80 °C
Ambient Temperature (Moving Cable): 0 °C to +60 °C
Sheath Material / Colour: PVC / Orange (RAL 2003)
Insulation Type: CFC- and silicone-free
Approvals: UL and CSA certified
Protection Class: IP20
Typical Application: Connection between SINAMICS S120 drive and motor
Manufacturer: Siemens AG
Country of Origin: Germany

Downloads

Datasheet

Additional Information

Device	Cable
Type	Power \| Cable

Experience reliable performance with the 6FX5002-5CN27-1CF0 pre-assembled power cable, designed for SINAMICS S120 motor modules. This durable MOTION-CONNECT 500 cable ensures optimal connectivity and efficiency, handling high voltages and extreme temperatures, making it perfect for industrial applications. Upgrade your setup with this UL and CSA certified cable, engineered for peak performance and longevity.
