Power Cable Pre-assembled Type 6FX5002-5DN27 4X1.5, (2x1.5)C C Connector Speed-connect Size 0.5 For Sinamics S120 UL/CSA, Desina DMAX = 10.8 MM Length (M) = +0 +20 +5 +0

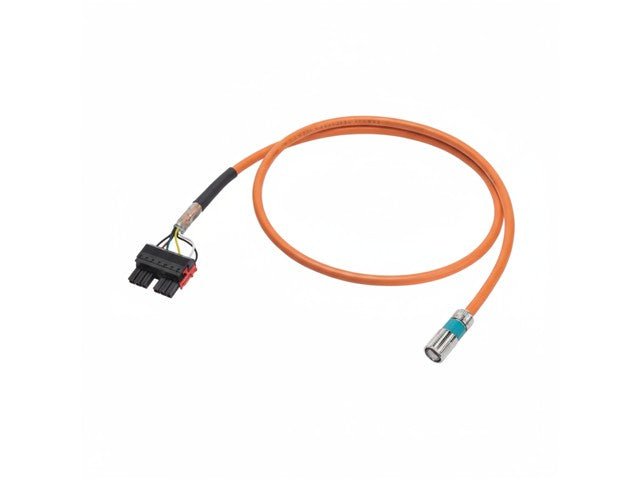

Power Cable Pre-assembled
Specifications
- Article / Order Code: 6FX5002-5DN27-1CF0
- Product Description: Pre-assembled power cable, type “MOTION-CONNECT 500”, for use with SINAMICS S120 Booksize motor modules (C-/D-types)
- Conductor Configuration: 4 × 1.5 mm² main power conductors + (2 × 1.5 mm²) control/signal conductors
- Connector Type: SPEED-CONNECT, size 0.5
- Maximum Outer Diameter (approx): ~10.8 mm
- Static Bending Radius (fixed installation): Minimum ~21 mm
- Dynamic Bending Radius (moving installation): Minimum ~155 mm
- Ambient Temperature (fixed cable): –20 °C to +80 °C
- Ambient Temperature (moving cable): 0 °C to +60 °C
- Sheath Material & Colour: Industrial PVC sheath, colour orange (RAL 2003)
- Insulation Type: CFC-free and silicone-free
- Approvals / Certification: UL and CSA certification (USA/Canada)
- Compatible Systems: For connection between SINAMICS S120 drive system and compatible motors
- Manufacturer: Siemens AG
- Country of Origin: Germany
Downloads
Additional Information
| Device |
Cable |
| Type |
Power | Cable | Pre-assembled |
Enhance your SINAMICS S120 performance with the 6FX5002-5DN27-1CF0 pre-assembled power cable. Featuring a robust 4x1.5 mm² conductor configuration and SPEED-CONNECT for effortless installation, this UL/CSA certified cable ensures reliable power and signal delivery in demanding environments. Experience superior flexibility and durability for your industrial applications with Siemens' trusted quality.
