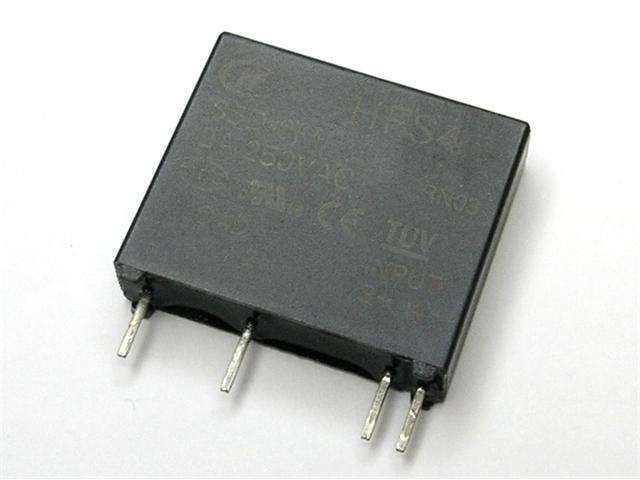

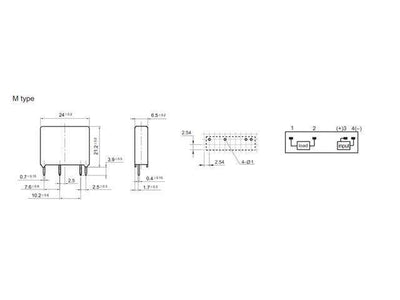

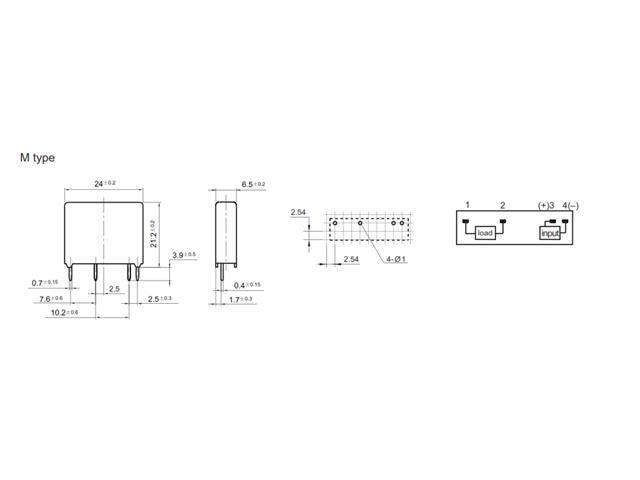

HFS4-05D0M

 This SPST-NO printed circuit board mount SIP SSR provides AC output switching in a high density package.The HFS4’s DC input is compatible with 5, 12 and 24V logic systems .All models include an internal snubber.The relays provide 2000VAC opto-isolation,between input and output. Encapsulation,thermally conductive epoxy.

• DC input-AC output for 2A load at 25°C
• Photo isolation
• Built-in snubber
• Zero cross or random turn-on
• Printed circuit board mount
• RoHS compliant

Input (TA = 25°C)

• Control Voltage Range : 4 to 6VDC
• Must Operate Voltage : 4VDC
• Must Release Voltage: 1.0VDC
• Max. Input Current: 15mA

Output (TA = 25°C)

• Load Voltage Range : 75 to 280VAC
• Load Current Range : 0.1 to 2A
• Max. Surge Current (10ms) : 25Apk
• Max. Leakage Current : 1.5mA
• Max. On-state Voltage Drop : 1.5Vrms
• Max. Turn-on Time
• Zero Cross Turn-on : 1/2 cycle + 1ms
• Random_turn-on : 1ms
• Max. Turn-off Time : 1/2 cycle + 1ms
• Max. Transient Overvoltage : 600 Vpk
• Min. Off-state dv/dt : 100V/µs
• Max. Zero-cross Overvoltage : ±15V
• Min. Power Factor : 0.5

General (TA25°C)

• Dielectric Strength (input to output) : 2000VAC, 50/60Hz, 1min
• Insulation Resistance : 1000MΩ (at 500VDC)
• Max. Capacitance (input/output) : 5pF
• Vibration Resistance : 10 to 55Hz 15mm DA
• Shock Resistance : 1000m/s²
• Operating Ambient Temperature : -30°C to 80°C
• Storage Ambient Temperature : -30°C to 100°C
• Ambient Humidity : 45% to 85% RH
• Unit Weight : Approx. 6g
