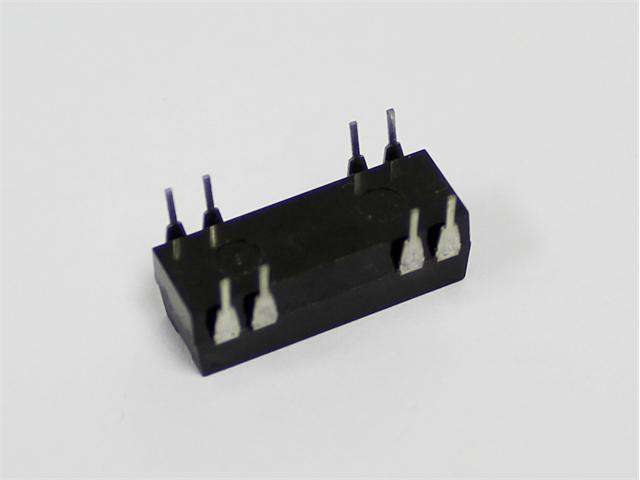

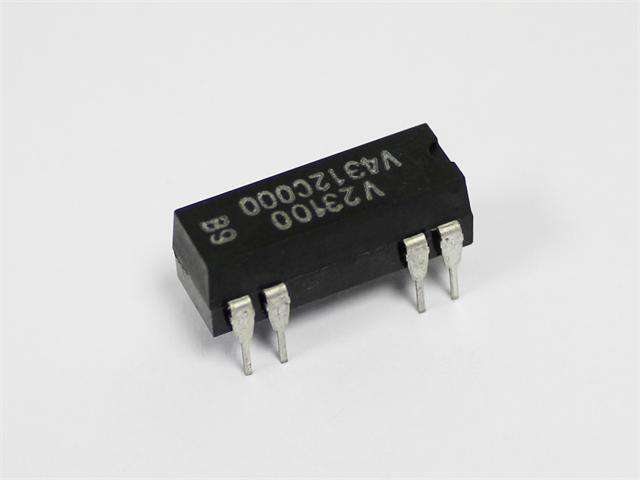

V23100-V4312-C000

Name: V23100-V4312-C000 - Communica [Part No: V23100-V4312-C000]
Brand: TE Connectivity
SKU: V23100-V4312-C000
Price: 25.65 ZAR
Availability: InStock

SKU: V23100-V4312-C000

BRAND: TE Connectivity

R 29.50_{(inc VAT)}
R 25.65_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Relays

Category: Reed Relays

Reed Relay • Form 1C • VCoil= 12V DC • IMax Switching= 1.2A • RCoil= 500Ω • PCB

Overview

Features

Direct coil control with TTL-signals possible
Highly reliable switching
High switching rates
Ultrasonic cleanable
High vibration and shock resistance

Specification

Contact Form	Form 1C
Termination	PCB
Coil Rated Voltage	12V
AC/DC Voltage	DC
Max. Switching Current	1.2A
Coil Power	288mW Power
Coil Resistance	500Ω
Approvals	UL
Contact Material	Ruthenium
Pin Layout	DIL

Downloads

Datasheet Download

Upgrade your projects with the V23100-V4312-C000 Reed Relay, featuring reliable Form 1C switching at 12V DC and 1.2A max current. Its high vibration resistance and ultrasonic cleanability ensure durability and performance, making it ideal for demanding applications. Enjoy seamless TTL control and efficiency with this UL-approved relay, perfect for your PCB needs.
