1553ABK - Plastic Enclosures - 623980035475

1553ABK

Name: 1553ABK - Communica [Part No: 1553ABK]
Brand: Hammond
SKU: 1553ABK
Price: 160 ZAR
Availability: InStock

SKU: 1553ABK

BRAND: Hammond

R 184.00_{(inc VAT)}
R 160.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Enclosures

Type: Plastic Enclosures

Category: Handheld Enclosure

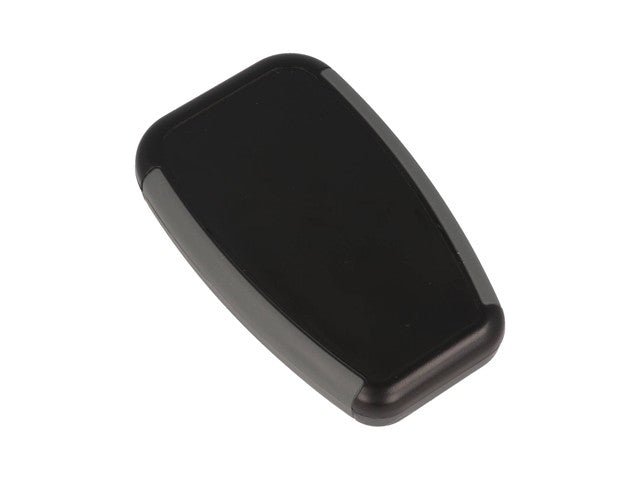

100x61x17mm Black ABS Plastic Enclosure with Soft Side Grip

Plastic Handheld Enclosure

Feature(s)

Ergonomically designed for hand-held comfort.
Choice of five sizes - in two colors.
Choice of two versions in the three larger sizes (ie...with or without battery door & compartment)
Four additional color combinations have also been added - to the two larger sizes
Molded in general purpose ABS plastic with a grey overmold, soft plastic grip.
Top cover is recessed for membrane display or keypad.

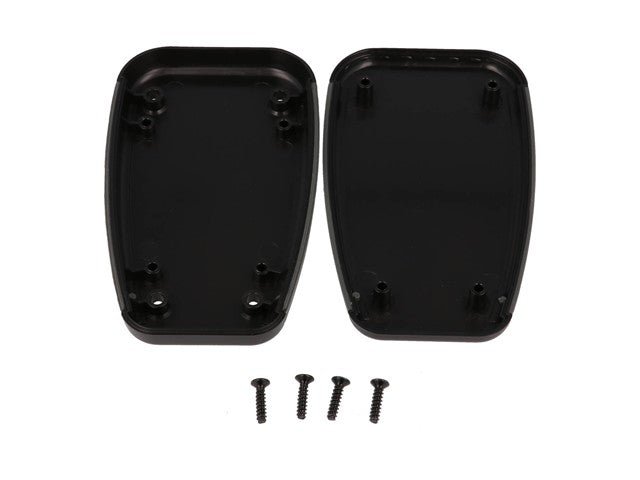

P.C. board standoffs are molded into case (see drawings or photos for more details).
Includes removable front panel (for easy modifications) and assembly hardware (except for smalles 1553A units).
Battery door & compartment version includes 4 battery clips (for 2 - AA batteries) and a 9 volt (PP3) battery clip.
Choice of two enclosure colors, light grey (RAL 7035) or black (RAL 9011) - soft side "grip" plastic color is grey (RAL 7012).

Specifications

Size L x W x H	3.94 in x 2.41 in x 0.67 in (100 mm x 61 mm x 17 mm)
Shipping Weight	0.07 lbs (0.03 kg)
Packaging Type	shrink wrap
Material	ABS Plastic
Color	Black
Flame Rating	UL94 HB
IP Rating	IP54
Product Category	Enclosures
Type	Hand-held, soft sided
Max. P.C. Board Length (mm)	94.8
Max. P.C. Board Width (mm)	48.8

Downloads

Datasheet - 1553A

Additional Information

Device	Enclosure
Type	Plastic \| Handheld

Discover the 1553ABK Black ABS Plastic Enclosure, expertly designed for ergonomic comfort and versatility. With a sleek, soft grip and space for custom displays, this lightweight handheld case is perfect for your electronic projects. Choose from multiple sizes and colors to find the ideal fit for your needs. Durable and stylish, it ensures your devices are both protected and user-friendly.
