1553AGY

SKU: 1553AGY

BRAND: Hammond


100x61x17mm Grey ABS Plastic Enclosure with Soft Side Grip

Plastic Handheld Enclosure

Feature(s)

  • Ergonomically designed for hand-held comfort.
  • Choice of five sizes - in two colors.
  • Choice of two versions in the three larger sizes (ie...with or without battery door & compartment)
  • Four additional color combinations have also been added - to the two larger sizes
  • Molded in general purpose ABS plastic with a grey overmold, soft plastic grip.
  • Top cover is recessed for membrane display or keypad.

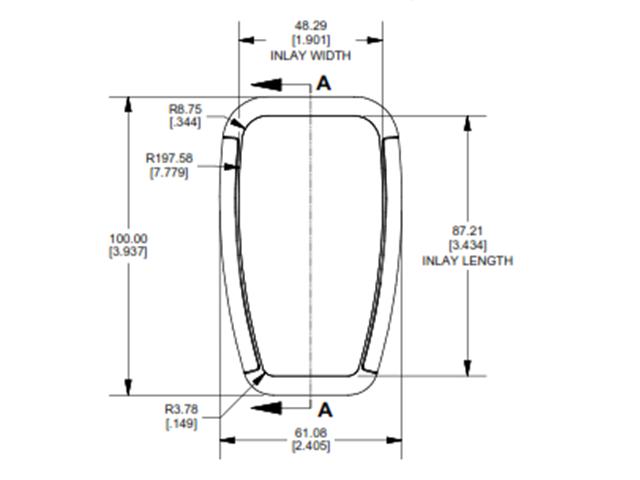

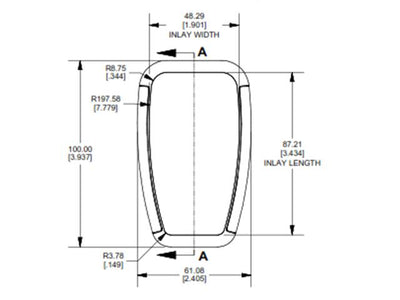

  • P.C. board standoffs are molded into case (see drawings or photos for more details).
  • Includes removable front panel (for easy modifications) and assembly hardware (except for smalles 1553A units).
  • Battery door & compartment version includes 4 battery clips (for 2 - AA batteries) and a 9 volt (PP3) battery clip.
  • Choice of two enclosure colors, light grey (RAL 7035) or black (RAL 9011) - soft side "grip" plastic color is grey (RAL 7012).

Specifications

  • Body Material : ABS
  • Colour : Grey
  • Display Window : Yes
  • Dimensions : 100x618x17 mm
  • IP Rating : IP54
  • Keypad Recess : Yes

Downloads

Additional Information

Device Enclosure
Type Plastic | Handheld
Body Material ABS Plastic
Size 100mm x 618mm x 17mm
Base Colour Grey
