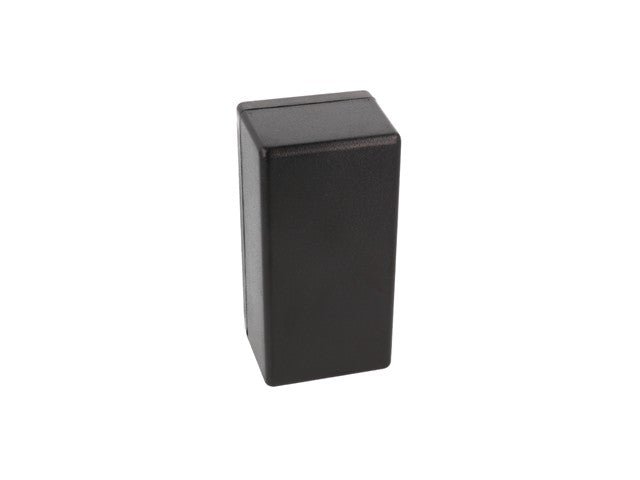

Heavy Duty Enclosure • ABS Plastic • 131x66x55mm • Black
Feature(s)
- Rugged electronic instrument enclosures, ideally suited for mounting printed circuit boards.
- Heavy duty, thick wall design with an average wall thickness of .13” (3.3 mm).
- Also suited for vertical or horizontal mounting of printed circuit boards (using optional P.C. card guides - see accessories below).
- Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
- Interior of each enclosure part is specially masked and sprayed with an RFI/EMI copper conductive coating (see photo above).
- Coating manufacturer specifies an attenuation of more than 75 db from 1 Mhz. to 1 Ghz.
- Designed to meet IP54.

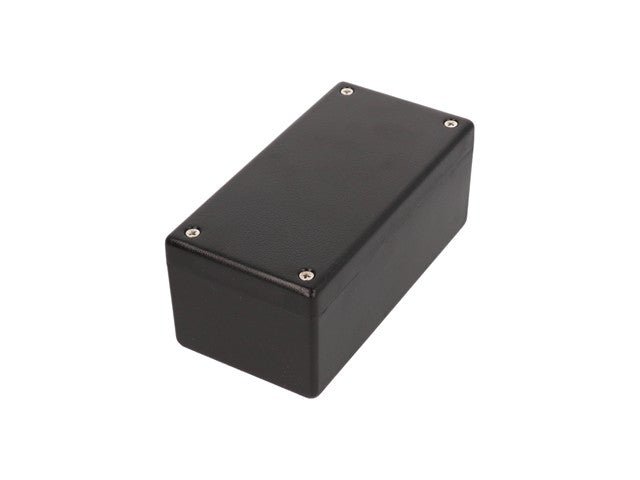

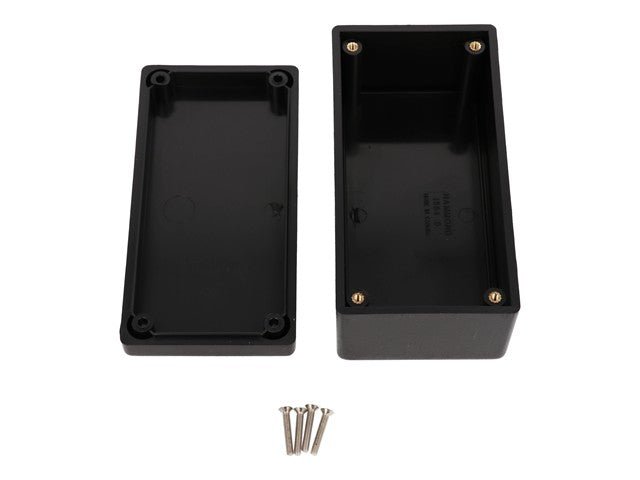

- Countersunk lid is secured with four M3 x 0.5 - 0.71” (18 mm) long, Philips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
- Stocked in black with matte textured finish.
Downloads
Additional Information
Sub Group |
Heavy Duty |
Group |
Plastic Enclosure |
Model |
1594DBK |
Device |
Heavy Duty |
Body Material |
ABS Plastic |
Size |
131mm x 66mm x 55mm |
Base Colour |
Black |
Degree of Protection |
IP54 |
