1594CWBK - Plastic Enclosures - 623980564265

1594CWBK

Name: 1594CWBK - Communica [Part No: 1594CWBK]
Brand: Hammond
SKU: 1594CWBK
Price: 295 ZAR
Availability: InStock

SKU: 1594CWBK

BRAND: Hammond

R 339.25_{(inc VAT)}
R 295.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Enclosures

Type: Plastic Enclosures

Category: ABS Plastic

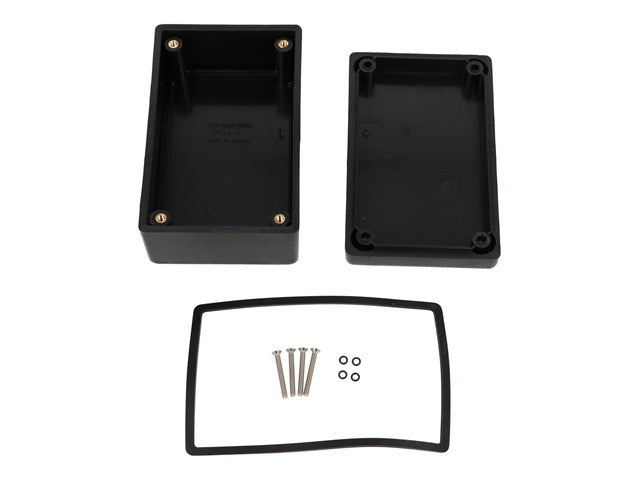

Polystyrene Enclosure 105X66X45 Black Water-Tight

Heavy Duty Enclosure

Feature(s)

Rugged electronic instrument enclosures, ideally suited for mounting printed circuit boards.
Heavy duty, thick wall design with an average wall thickness of .13” (3.3 mm).
Also suited for vertical or horizontal mounting of printed circuit boards (using optional P.C. card guides - see accessories below).
Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
Interior of each enclosure part is specially masked and sprayed with an RFI/EMI copper conductive coating (see photo above).
Coating manufacturer specifies an attenuation of more than 75 db from 1 Mhz. to 1 Ghz.
Designed to meet IP54.
Countersunk lid is secured with four M3 x 0.5 - 0.71” (18 mm) long, Philips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
Stocked in black with matte textured finish.

Specifications

Size L x W x H	4.1 in x 2.6 in x 1.3 in (104 mm x 66 mm x 33 mm)
Shipping Weight	0.25 lbs (0.11 kg)
UNSPSC	39121301
UPC	623980564265
Packaging Type	shrink wrap
Material	ABS Plastic
Color	Black
Flame Rating	UL94 V-0
IP Rating	IP65
Product Category	Enclosures
Type	Thick wall, water-tight

Downloads

Datasheet

Additional Information

Device	Enclosure
Type	Heavy Duty

Discover the 1594CWBK Heavy-Duty Polystyrene Enclosure, designed for durability and protection. With its water-tight, flame-retardant ABS construction and IP65 rating, it safeguards your electronic components from harsh environments. Ideal for vertical or horizontal PCB mounting, this rugged enclosure ensures easy assembly while offering reliable RFI/EMI shielding. Elevate your project’s performance with this versatile, high-quality enclosure today!
