1598ASGYPBK - Plastic Enclosures - 623980323114

1598ASGYPBK

Name: 1598ASGYPBK - Communica [Part No: 1598ASGYPBK]
Brand: Hammond
SKU: 1598ASGYPBK
Price: 150 ZAR
Availability: InStock

SKU: 1598ASGYPBK

BRAND: Hammond

R 172.50_{(inc VAT)}
R 150.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Enclosures

Type: Plastic Enclosures

Category: Instrument Enclosure

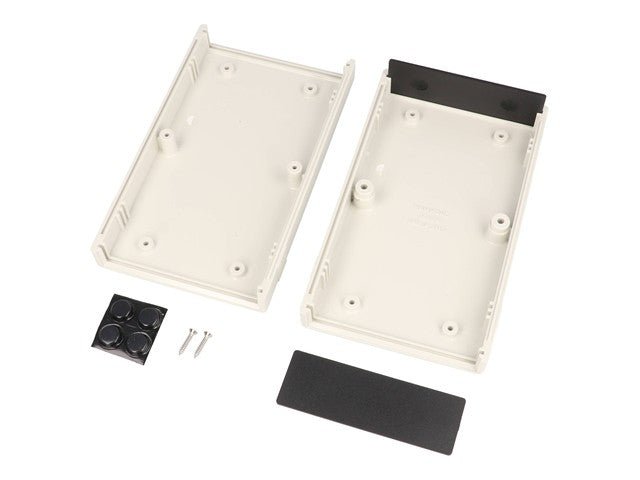

Polystyren Enclosure 157X94X36 Grey Enclosure Black Panel

Polystyrene Plastic Instrument Enclosure

Feature(s)

Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
Designed to meet IP54.
Two sets of vertical 1.5 mm (0.062”) P.C. board guides are molded into case halves front and rear.
Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.
Enclosure halves are secured with M3 x 0.5” x 10 mm (0.39”) Phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
Integral horizontal P.C. card mounts on Eurocard centers.

Specifications

Size L x W x H	6.1 in x 3.6 in x 1.4 in (155 mm x 91 mm x 36 mm)
Shipping Weight	0.31 lbs (0.14 kg)
Packaging Type	shrink wrap
Material	ABS Plastic
Color	Black
Flame Rating	UL94 V-0
IP Rating	IP54
Product Category	Enclosures
Type	Instrument Case
Max. P.C. Board Length (mm)	80.67
Max. P.C. Board Width (mm)	144.6

Downloads

Datasheet

Additional Information

Device	Enclosure
Type	Polystyrene Plastic \| Instrument

The 1598ASGYPBK Polystyrene Enclosure is the ideal solution for protecting your electronic instruments. Crafted from flame-retardant ABS plastic with an IP54 rating, it ensures durability and safety. Perfect for easy assembly and disassembly, this sleek black enclosure securely houses your printed circuit boards while providing a professional finish. Upgrade your projects with this reliable and efficient instrument case today!
