1598BBBK - Plastic Enclosures - 623980791418

1598BBBK

Name: 1598BBBK - Communica [Part No: 1598BBBK]
Brand: Hammond
SKU: 1598BBBK
Price: 280 ZAR
Availability: InStock

SKU: 1598BBBK

BRAND: Hammond

R 322.00_{(inc VAT)}
R 280.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Enclosures

Type: Plastic Enclosures

Category: Instrument Enclosure, IP54 ABS Plastic

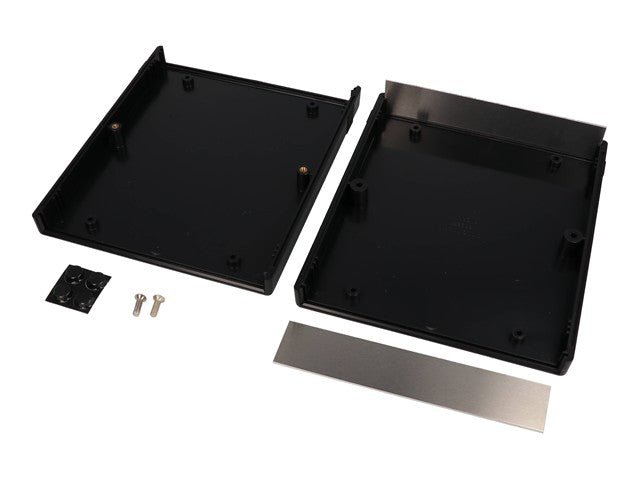

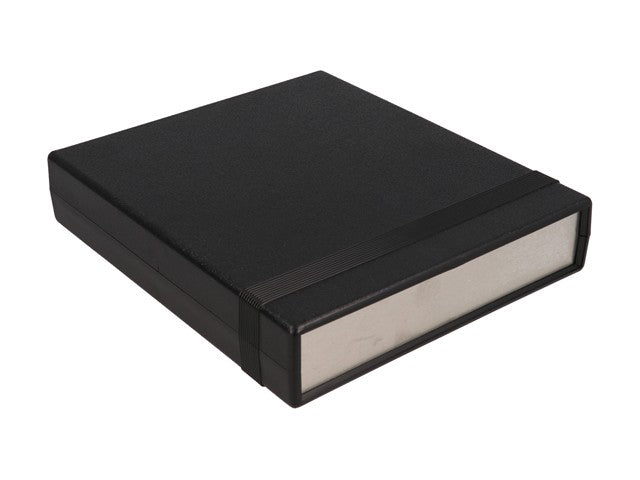

ABS Enclosure 179X154X36 Black

Flame Retardent ABS Plastic Instrument Enclosure

Feature(s)

Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
Designed to meet IP54.
Two sets of vertical 1.5 mm (0.062”) P.C. board guides are molded into case halves front and rear.
Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.
Enclosure halves are secured with M3 x 0.5” x 10 mm (0.39”) Phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
Integral horizontal P.C. card mounts on Eurocard centers.

Specifications

Size L x W x H	7.05 in x 6.08 in x 1.4 in (179 mm x 154 mm x 36 mm)
Shipping Weight	0.58 lbs (0.26 kg)
Packaging Type	shrink wrap
Material	ABS Plastic
Color	Black
Flame Rating	UL94 V-0
IP Rating	IP54
Product Category	Enclosures
Type	Instrument Case
Max. P.C. Board Length (mm)	141.05
Max. P.C. Board Width (mm)	167.8

Downloads

Datasheet

Additional Information

Device	Enclosure
Type	Flame Retardent \| ABS Plastic \| Instrument

Discover the 1598BBBK ABS Enclosure, a durable and flame-retardant solution perfect for your electronic projects. With its sleek black design and IP54 rating, this instrument case ensures superior protection for your circuit boards while facilitating easy assembly and disassembly. Upgrade your workspace with this reliable, high-quality enclosure today!
