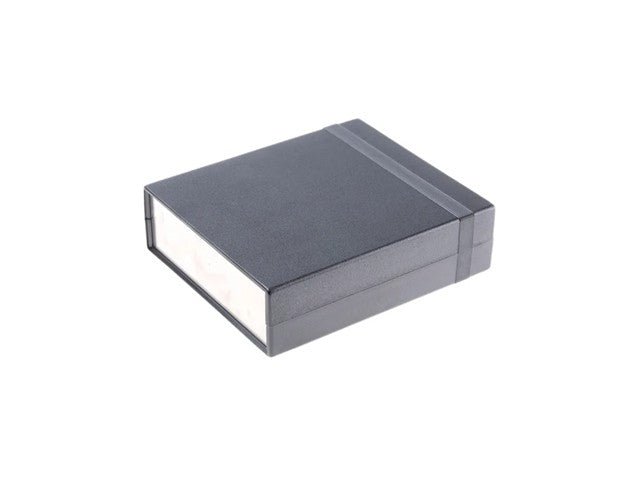

1598CBK - Plastic Enclosures - 623980794686

1598CBK

Name: 1598CBK - Communica [Part No: 1598CBK]
Brand: Hammond
SKU: 1598CBK
Price: 405 ZAR
Availability: InStock

SKU: 1598CBK

BRAND: Hammond

R 465.75_{(inc VAT)}
R 405.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Enclosures

Type: Plastic Enclosures

Category: Instrument Enclosure, Polystyrene Plastic

ABS Plastic Instrument Enclosure Black 180X155X52MM Aluminium Panels IP54 Flame Retardent

Flame Retardent ABS Plastic Instrument Enclosure

Feature(s)

Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
Designed to meet IP54.
Two sets of vertical 1.5 mm (0.062”) P.C. board guides are molded into case halves front and rear.
Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.
Enclosure halves are secured with M3 x 0.5” x 10 mm (0.39”) Phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
Integral horizontal P.C. card mounts on Eurocard centers.

Specifications

Size L x W x H	7.07 in x 6.06 in x 2.04 in (180 mm x 154 mm x 52 mm)
Shipping Weight	0.71 lbs (0.32 kg)
Packaging Type	shrink wrap
Material	ABS Plastic
Color	Black
Flame Rating	UL94 V-0
IP Rating	IP54
Product Category	Enclosures
Type	Instrument Case
Max. P.C. Board Length (mm)	140.67
Max. P.C. Board Width (mm)	166.9

Downloads

Datasheet

Additional Information

Device	Enclosure
Type	Flame Retardent \| ABS Plastic \| Instrument

Discover the 1598CBK ABS Plastic Instrument Enclosure, expertly designed for optimal protection and functionality. With a sleek black finish, IP54 rating, and flame retardant properties, it's perfect for housing your electronic components securely while ensuring safety. Ideal for desktop applications, this durable enclosure features aluminum panels and easy assembly for hassle-free installation of printed circuit boards. Elevate your project with this reliable and stylish solution today!
