1598CGY

Name: 1598CGY - Communica [Part No: 1598CGY]
Brand: Hammond
SKU: 1598CGY
Price: 405 ZAR
Availability: InStock

SKU: 1598CGY

BRAND: Hammond

R 465.75_{(inc VAT)}
R 405.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Enclosures

Type: Plastic Enclosures

Category: IP54 ABS Plastic

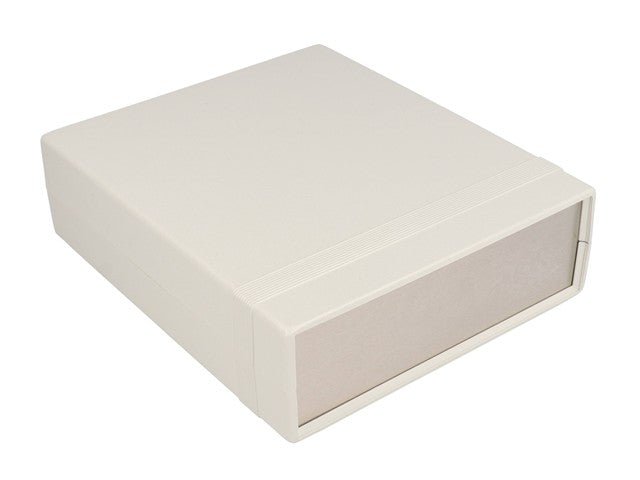

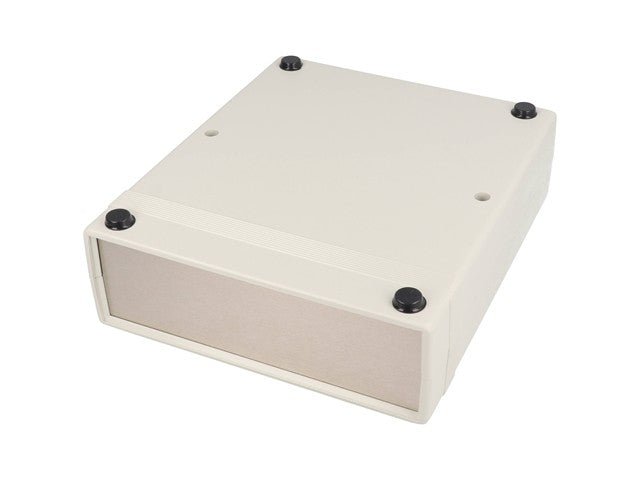

ABS Plastic Instrument Enclosure Grey 180X155X52MM Aluminium Panels IP54 Flame Retardent

ABS Plastic Instrument Enclosure Grey

Feature(s)

Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
Designed to meet IP54.

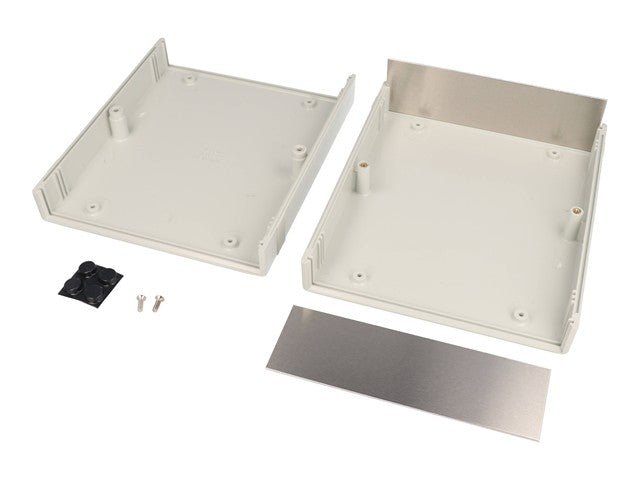

Two sets of vertical 1.5 mm (0.062”) P.C. board guides are molded into case halves front and rear.
Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.
Enclosure halves are secured with M3 x 0.5” x 10 mm (0.39”) Phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
Integral horizontal P.C. card mounts on Eurocard centers.

Specifications

Size L x W x H	7.07 in x 6.06 in x 2.04 in (180 mm x 154 mm x 52 mm)
Shipping Weight	0.71 lbs (0.32 kg)
Packaging Type	shrink wrap
Material	ABS Plastic
Color	Light Gray
Flame Rating	UL94 V-0
IP Rating	IP54
Product Category	Enclosures
Type	Instrument Case
Max. P.C. Board Length (mm)	140.67
Max. P.C. Board Width (mm)	166.9

Downloads

Datasheet - 1598CGY

Additional Information

Device	Enclosure
Type	Aluminium \| Panels \| IP54 \| Flame \| Retardent

Discover the 1598CGY ABS Plastic Instrument Enclosure, designed for durability and safety with its flame-retardant material and IP54 rating. Perfect for securing printed circuit boards, this sleek grey enclosure features brushed aluminum panels and easy assembly, making it ideal for your electronic projects. Elevate your setup with a reliable, high-quality enclosure that ensures optimal performance and protection.
