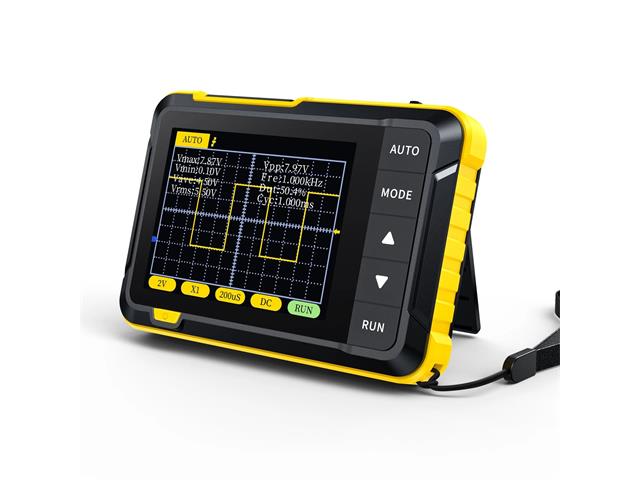

FNIRSI DSO152 ONE CH 200KHZ

Name: FNIRSI DSO152 ONE CH 200KHZ - Communica [Part No: FNIRSI DSO152 ONE CH 200KHZ]
Brand: Fnirsi
SKU: FNIRSI DSO152 ONE CH 200KHZ
Price: 617.39 ZAR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: FNIRSI DSO152 ONE CH 200KHZ

BRAND: Fnirsi

In Stock
R 710.00_{(inc VAT)}
R 617.39_{(ex VAT)}

Collections: FNIRSI, Test & Measurement

Type: Oscilloscopes

Category: Hand-held Oscilloscopes

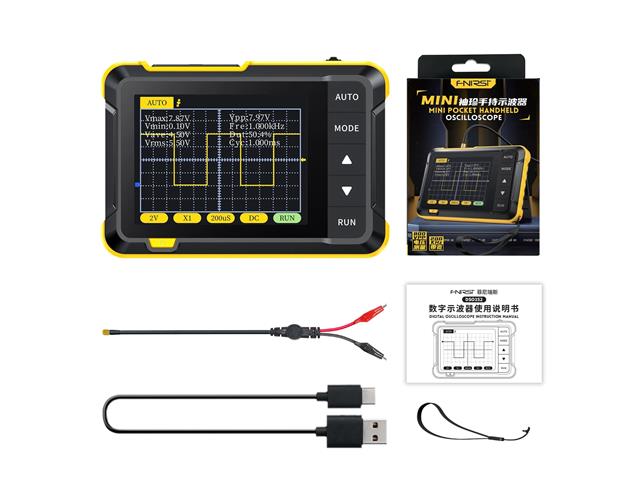

DSO-152 is a Handheld Digital Oscilloscope with a 200KHZ Bandwidth and 2.5MSA/S Sampling Rate. (Does Not Include FNIRSI P6100 X1 X10 SCOPE PROBE and BDD OSCOPE PROBE BNC-MCX ADAPTER)

Handheld Digital Oscilloscope

Features

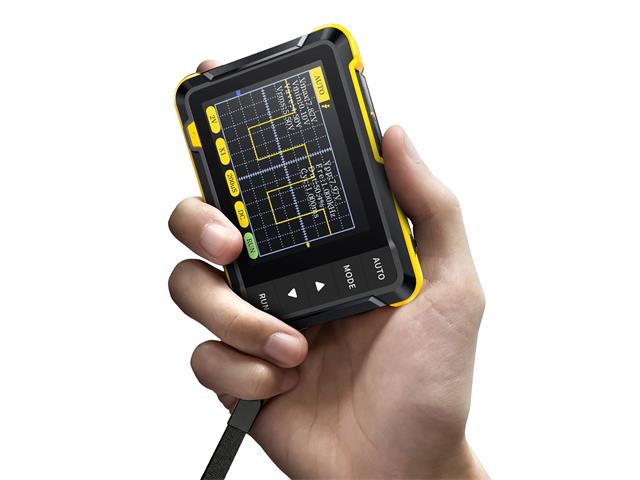

Portable 2.8" TFT Handheld Oscilloscope for beginners, hobbyist

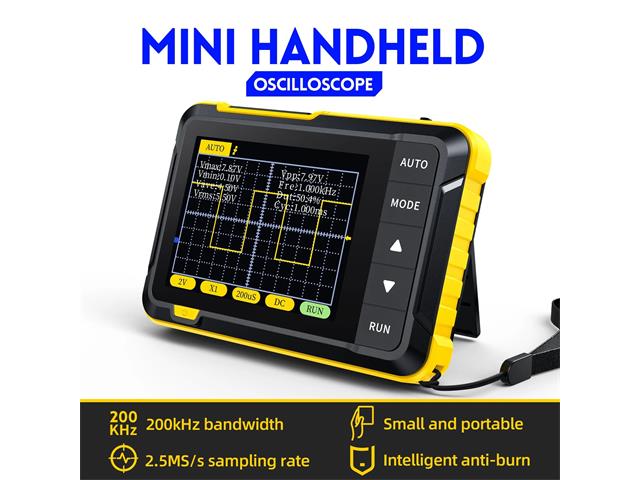

Dso oscilloscope: 2.5MS/s, 200KHz bandwidth, wide voltage range.

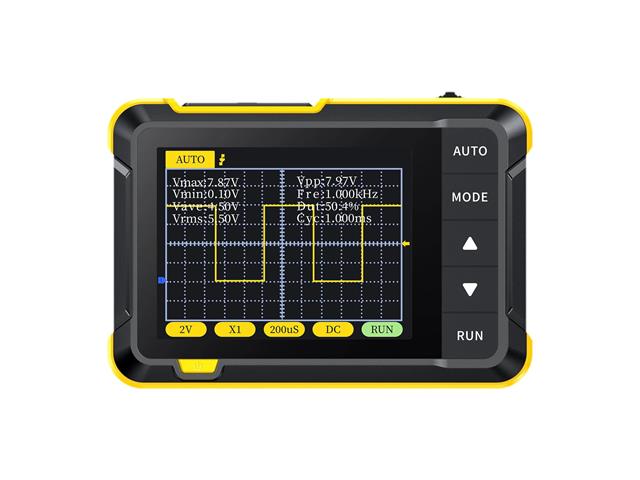

High-definition 320*240 LCD, Type-C interface.
fnirsi handheld oscilloscope: Finished assembly, lightweight, perfect for maintenance.
Versatile trigger functions: single, normal, automatic.
Suitable for analog and digital signals.
Convenient one-key AUTO adjustment.
Displays waveform without complex setup.

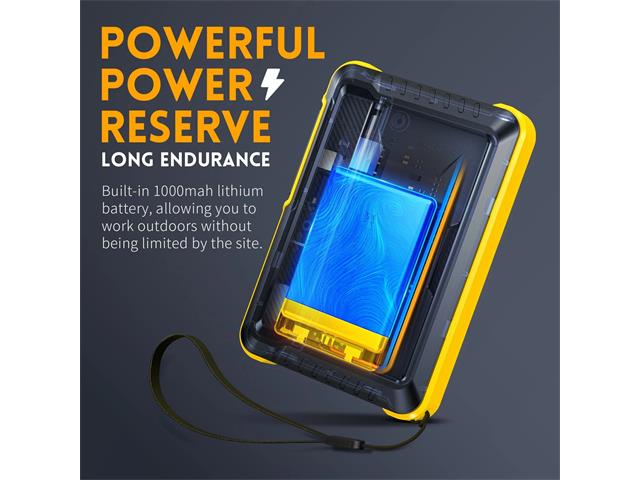

1000mAh lithium battery, up to 4 hours.
Long press AUTO for baseline calibration.

Specifications

Analog Bandwidth: 0~200kHz
1 Channel
Sampling Speed: 2.5MS/s
Vertical Scale: 10mV/div ~ 20V/div
Timebase Range: 1 μs/div ~ 50 s/div
Voltage Range: X1: 40Vpp; X10: 800Vpp
Trigger Modes: Auto, Normal, Single
Frequency: 1K Duty Cycle: 50%
Display: 2.8inch LCD (320×240 pixels)
Lithium Battery Capacity: 1000mAh
Dimensions: 99 x 68 x 19.5mm
Weight: 100g
Certification: CE

Downloads

Datasheet - FNIRSI DSO152 ONE CH 200KHZ

Additional Information

Device	Oscilloscope
Type	Handheld \| Digital
