EZVIZ CS - E4P - R100 - 8C6WKF - Home Automation - 6941545636634

EZVIZ CS-E4P-R100-8C6WKF

Name: EZVIZ CS-E4P-R100-8C6WKF - Communica [Part No: EZVIZ CS-E4P-R100-8C6WKF]
Brand: Ezviz
SKU: EZVIZ CS-E4P-R100-8C6WKF
Price: 1560.87 ZAR
Availability: InStock

SKU: EZVIZ CS-E4P-R100-8C6WKF

BRAND: Ezviz

In Stock
R 1,795.00_{(inc VAT)}
R 1,560.87_{(ex VAT)}

Collections: Home Automation, New Arrivals

Type: Home Automation

Category: New, Wifi Indoor Camera

EZVIZ Smart Home WiFi Panoramic Fisheye Camera 6MP 1.82mm @ F2.0 Lens, 10m IR, 360° Panoramic View, Two-Way Talk, 1/2.8” CMOS, 3D DNR, WDR, H.264 / H.265, Motion Detection, AI-Powered Human Shape Detection, Supports Micro SD MAX512GB, Type-C

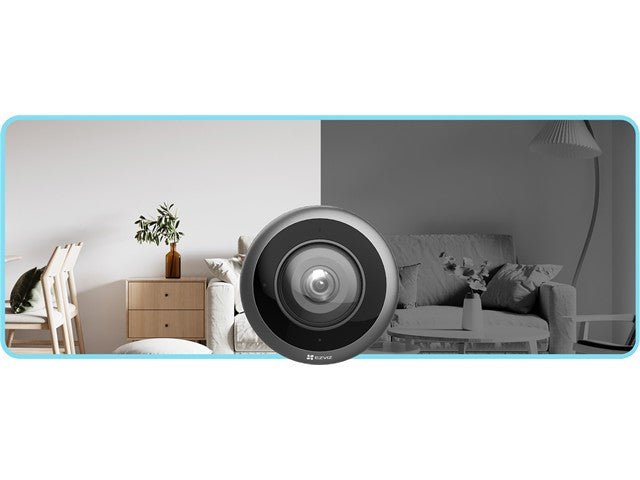

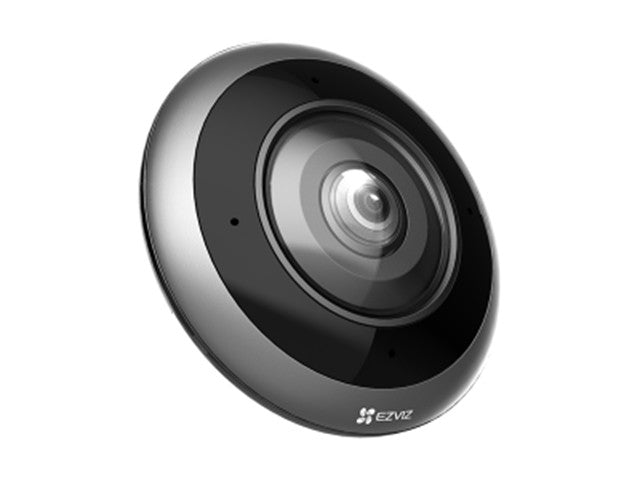

Smart Home WiFi Panoramic Fisheye Camera

Specifications

Compression
Image Sensor	1/2.8” Progressive Scan CMOS
Shutter Speed	Self-adaptive shutter
Lens	M12
Day & Night	IR-cut filter with auto switch
DNR	3D DNR
WDR	Digital WDR
Compression
Image Sensor	1/2.8” Progressive Scan CMOS
Shutter Speed	Self-adaptive shutter
Max. Resolution	3K⁺ (2320 × 2320)
Frame Rate	Max. 25 fps
Network
Smart Alarm	Motion Detection, AI-Powered Human Shape Detection
Wi-Fi Pairing	AP pairing
Protocol	EZVIZ Cloud Proprietary Protocol
Interface
Storage	Supports microSD card (max. 512 GB)
Power	Type-C
Wi-Fi
Standard	IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
Frequency Range	2.4G: 2.412 GHz ~ 2.472 GHz 5G: 5.17 GHz ~ 5.25 GHz
Channel Bandwidth	Support 20 MHz
Security	WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate	11b 11 Mbps, 11g 54 Mbps, 11nHT20 MCS7, 11a 54 Mbps, 11nHT20 MCS7, 11ac MSC7
Output Power (EIRP)	19 dBm
Antenna Gain	2.4G: 1.79 dBi 5G: 3.61dBi
General
Operating Conditions	-10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
Power Supply	DC 5 V / 2 A
Power Consumption	Max. 8 W
IR Range	Max. 10 meters (32.81 ft)

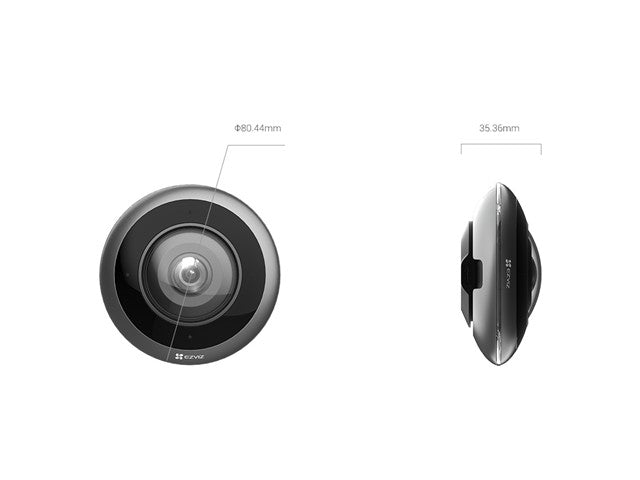

Product Dimensions	φ80 × 35 mm (φ3.15 × 1.38 inch)
Packaging Dimensions	114 × 114 × 120 mm (4.49 × 4.49 × 4.72 inch)
Bare Weight	122 g (4.3 oz)
Weight	610 g (21.52 oz)
In the box
In the box	- E4p Camera
	- Mounting Base
	- Drill Template
	- Power Adapter
	- Type-C Cable
	- Screw Kit
	- Pin Key
	- Regulatory Information × 2
	- Quick Start Guide

Downloads

Datasheet - EZVIZ CS-E4P-R100-8C6WKF

Additional Information

Device	Camera
Type	Smart Home \| WiFi \| Panoramic \| Fisheye
