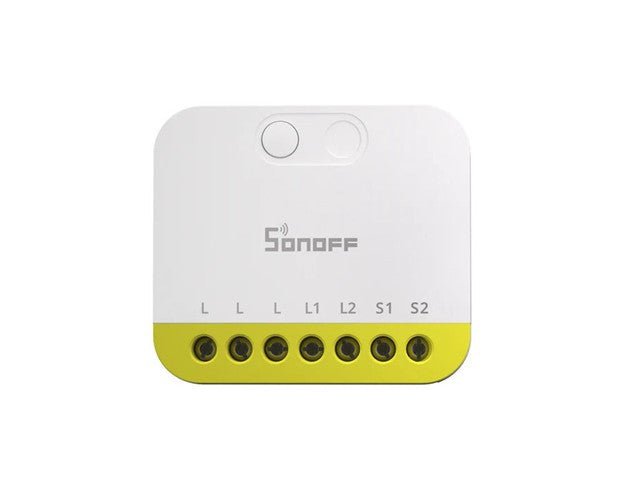

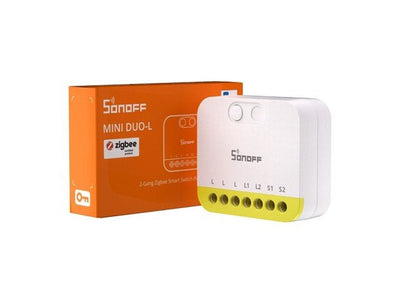

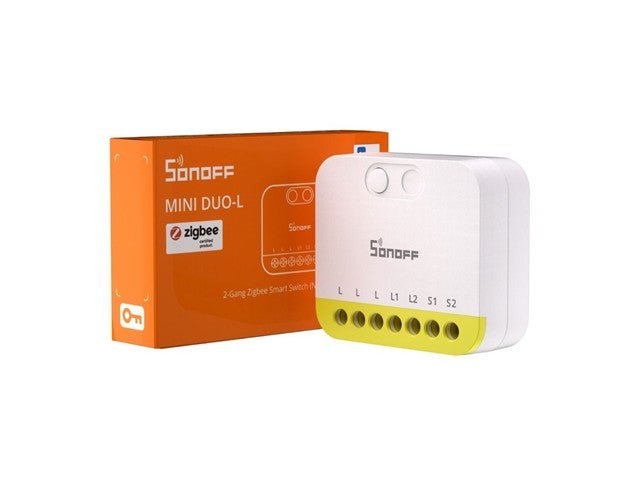

SONOFF MINI-ZB2GS-L MINI DUO-L 2

SKU: SONOFF MINI-ZB2GS-L MINI DUO-L 2

BRAND: Sonoff


🚚
Delivery time: 2-5 working days for South Africa
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
ZIGBEE 3.0 Dual‑Gang Smart Switch with no Neutral Required, 2× 8 A Outputs (12 A Total), External Switch Support, Compact Install Behind Wall Switch. Requires a ZIGBEE Hub

3.0 Dual‑Gang Smart Switch

Overview

The Sonoff Mini Duo No Neutral (Zigbee) has Dual Control for efficiency. The “Duo” capability allows you to control two distinct electrical circuits (2 Live Outputs) from a single unit. Despite this dual functionality, it retains the ultra-compact “Extreme” form factor, making it small.

Retain Physical Control Don’t lose your traditional wall switches. The S1/S2 ports allow you to wire your existing 2-lever rocker switches directly to the unit, giving you the best of both worlds: smart app control and familiar physical switching.

Features

  • Zigbee 3.0 Protocol: Fast, reliable, and low-latency local control.
  • 2-Channel Output: Control two separate electrical circuits independently.
  • Hub Compatible: Works with Sonoff ZBBridge, SmartThings, and Amazon Echo (Zigbee).
  • Extreme Size: Ultra-small body fits inside standard 2×4 or 4×4 wall boxes.

Specifications

  • Product Type: Zigbee Smart Switch
  • Model: Sonoff Zigbee Mini Duo No Neutral (Extreme Series)
  • Protocol: Zigbee 3.0 (IEEE 802.15.4)
  • Input Voltage: 100-240V AC 50/60Hz
  • Output: 2-Channel / 2-Gang
  • Max Load: 16A Total (10A Max per Gang) – Subject to final rating on unit
  • Required Hardware: Zigbee Hub / Bridge (e.g., Sonoff ZBBridge Pro, iHost, NSPanel Pro)
  • External Switch Support: S1/S2 Ports (Rocker/Pulse switch compatible)
  • Range: Up to 30m (Indoor) / Extends via Mesh
  • Casing Material: PC V0 (Fire Retardant)

Product Size and Weight

  • Dimensions: 39.5 x 33 x 16.8mm
  • Weight: ~32g

Downloads

Additional Information

Device Switch
